Запчасти Case 650K (02-22) - CRANKSHAFT (02) - ENGINE

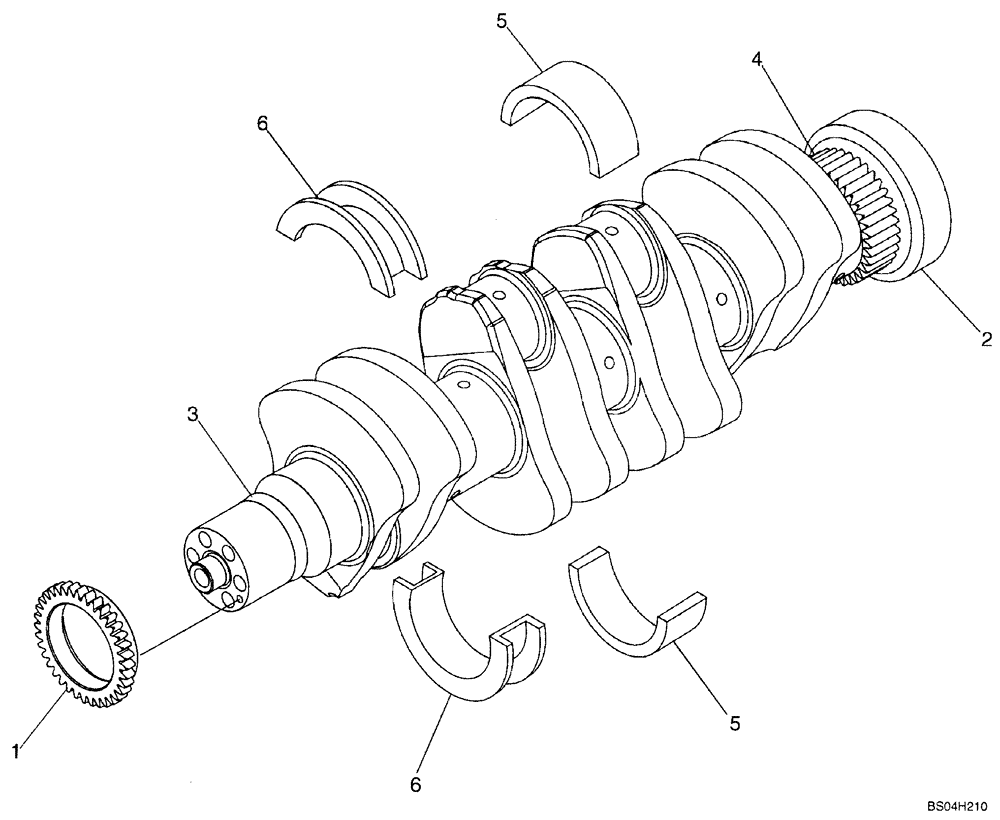

Схема запчастей Case 650K - (02-22) - CRANKSHAFT (02) - ENGINE
1
5
5
3
2
6
4
6

Артикул

Название

Примечание

Количество

2853822

CRANKSHAFT

CRANKSHAFT ASSY; Incl. 1 - 4

1шт.

2853822R

REMAN-CRANKSHAFT

Remanufactured Crankshaft;

1шт.

2853822C

CORE-CRANKSHAFT

Return Number

1шт.

1

4893386

GEAR,36 T

1шт.

2

2831066

COLLAR; Crankshaft

1шт.

3

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

4

4892438

GEAR,36T

Crankshaft

1шт.

5

2853815

BEARING HALF

BEARING, CRANKSHAFT; Main, Standard

4шт.

5

2995787

SET OF STD MAIN BRGS

; Replaces 4895017 and 2992147

4шт.

5

2855016

CRANKSHAFT BEARING,14.45 mm

Main; 0.25 Undersize

4шт.

5

2855017

CRANKSHAFT BEARING,14.45 mm

BEARING, CRANKSHAFT; Main; 0.50 Undersize

4шт.

5

2855018

CRANKSHAFT BEARING,14.45 mm

BEARING, CRANKSHAFT; Main; 0.75 Undersize

4шт.

5

2852019

BEARING, CRANKSHAFT; Main; 1.00 Undersize

4шт.

6

4895015

THRUST BEARING

Thrust, Standard

1шт.

6

2992153

CAP

; Replaces 4895414

1шт.

6

2855020

CRANKSHAFT BEARING,14.45 mm

BEARING, CRANKSHAFT; Thrust, 0.25 Undersize

1шт.

6

2855021

CRANKSHAFT BEARING

BEARING, CRANKSHAFT; Thrust, 0.50 Undersize

1шт.

6

2855022

CRANKSHAFT BEARING,16.15 mm

BEARING, CRANKSHAFT; Thrust, 0.75 Undersize

1шт.

6

2855023

CRANKSHAFT BEARING,16.15 mm

BEARING, CRANKSHAFT; Thrust, 1.00 Undersize

1шт.

Выбрано товаров: 19
