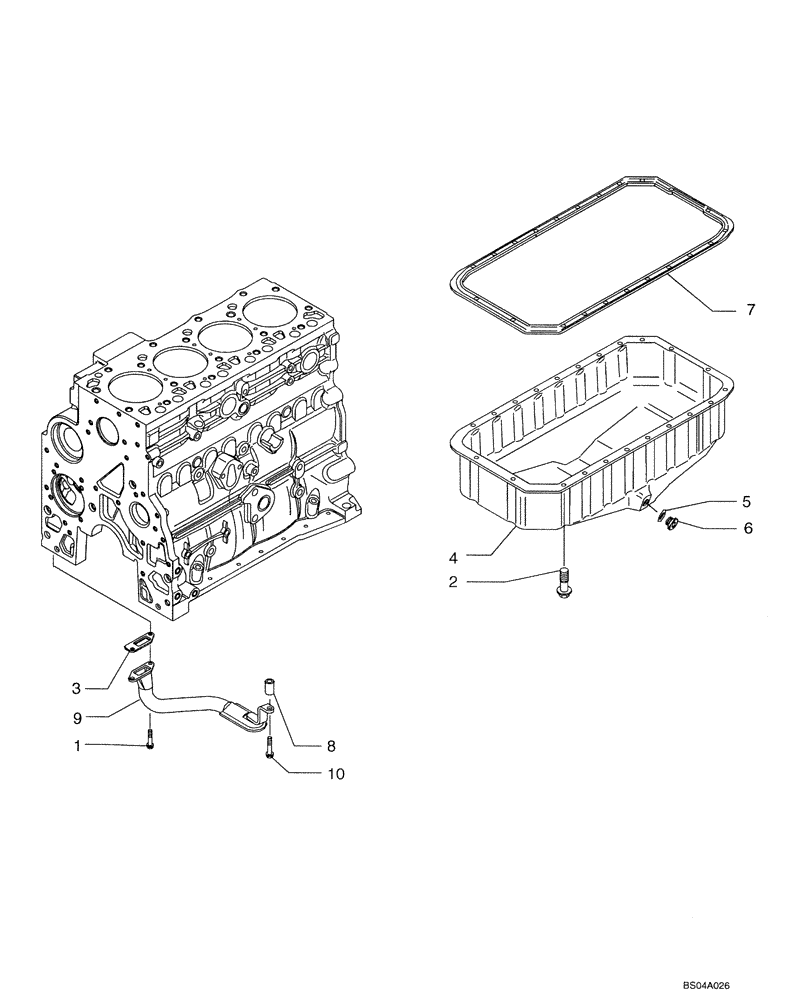

Запчасти Case 650K (02-12) - OIL PUMP, PAN (02) - ENGINE

1

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

Replaces 4899020

2шт.

1

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

22шт.

2

4895489

FLANGE BOLT,Hex, M8 x 1.25 x 110mm

2шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852011

ENGINE OIL PAN

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Replaces 2853728

1шт.

6

4894139

PLUG,Hex Soc, M22 x 1.5

Does Not Include Seal, Purchase Seal Separately

1шт.

7

2852012

OIL PAN GASKET SET

1шт.

8

2852016

SPACER,11mm ID x 22mm OD x 39mm L

If Used

1шт.

9

2852013

STRAINER ELEMENT

Tube; Oil Suction; Includes Screen Which Is Not Serviced Separately

1шт.

10

16599024

FLANGE BOLT,Hex, M10 x 120mm, Cl 8.8

Flange, M10 x 120; Replaces 4895538

1шт.
