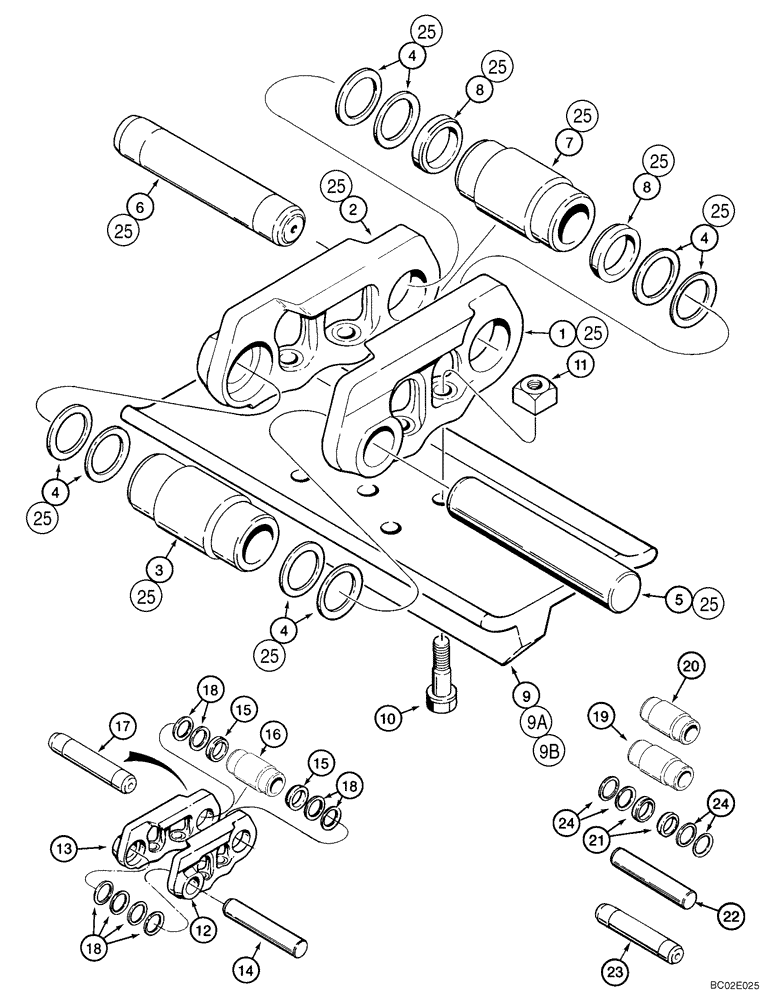

Запчасти Case 650K (05-09) - TRACK CHAIN, SEALED (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
418594A1
CRAWLER TRACK ASSY
406 mm (16 inch); Chain; Incl. Shoes; Incl. 300212A2, Ref 1 - 8; 9, 10, 11
2шт.
418596A1
CRAWLER TRACK ASSY
508 mm (20 inch); Chain; Incl. Shoes; Incl. 300212A2, Ref 1 - 8; 9A, 10, 11
2шт.
418599A1
CRAWLER TRACK ASSY
635 mm (25 inch); Chain; Incl. Shoes; Incl. 300212A2, Ref 1 - 8; 9B, 10, 11
2шт.
300212A2
TRACK CHAIN
Incl. Ref 1 - 8; Order 418494A1, Ref 25
1шт.
1
295178A2
LINK
Right-Hand
38шт.
2
295177A2
LINK
Left-Hand
38шт.
3
R56517
BUSHING
123,5 mm (4-7/8 in) OD; Link
37шт.
4
R50211
WASHER
152шт.
5
R49792
PIN,33.48mm OD x 183.5mm L
183 x 33 mm
37шт.
6
R54349
PIN,33.04mm OD x 183.5mm L
Master Link
1шт.
7
R56516
BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L
108 mm (4-1/4 in) OD; Master Link
1шт.
8
R50210
SPACER
2шт.
9
295180A1
SHOE
406 mm (16 inch)
38шт.
9a
300199A1
SHOE
508 mm (20 inch)
38шт.
9b
379670A1
TRACK SHOE
635 mm (25 inch)
38шт.
10
295318A1
BOLT,Hex, 5/8" - 18 x 2 1/8"
5/8 NF x 2-1/8
152шт.
11
R25688
SQUARE NUT
5/8 NF
152шт.
REF
INSTRUCTION
CHAIN UNIT KIT
1шт.
300214A2
SEAL KIT
Incl. Ref 12 - 18; Includes Instructions
1шт.
12
295178A2
LINK
Right-Hand
1шт.
13
295177A2
LINK
Left-Hand
1шт.
14
R49792
PIN,33.48mm OD x 183.5mm L
183 x 33 mm
2шт.
15
R50210
SPACER
2шт.
16
R56516
BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L
108 mm (4-1/4 in) OD; Master Link
1шт.
17
R54349
PIN,33.04mm OD x 183.5mm L
Master Link
1шт.
18
R50211
WASHER
8шт.
REF
INSTRUCTION
PIN AND BUSHING KIT - SERVICES COMPLETE TRACK CHAIN FOR BOTH SIDES OF TRACTOR
1шт.
434144A1
SERVICE KIT
Pin and Bushing Kit; Incl. Ref 19 - 24
1шт.
19
R56517
BUSHING
123,5 mm (4-7/8 in) OD; Standard Pin
78шт.
20
R56516
BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L
108 mm (4-1/4 in) OD; Master Pin
2шт.
21
R50210
SPACER
4шт.
22
R49792
PIN,33.48mm OD x 183.5mm L
183 x 33 mm; Standard
78шт.
23
R54281
PIN,33.41mm OD x 183.5mm L
Master Link
2шт.
24
R50211
WASHER
312шт.
REF
INSTRUCTION
LINK KIT
1шт.
25
418494A1
TRACK CHAIN
Link Service Kit; Incl. 300212A2, Ref 1 - 8
1шт.
