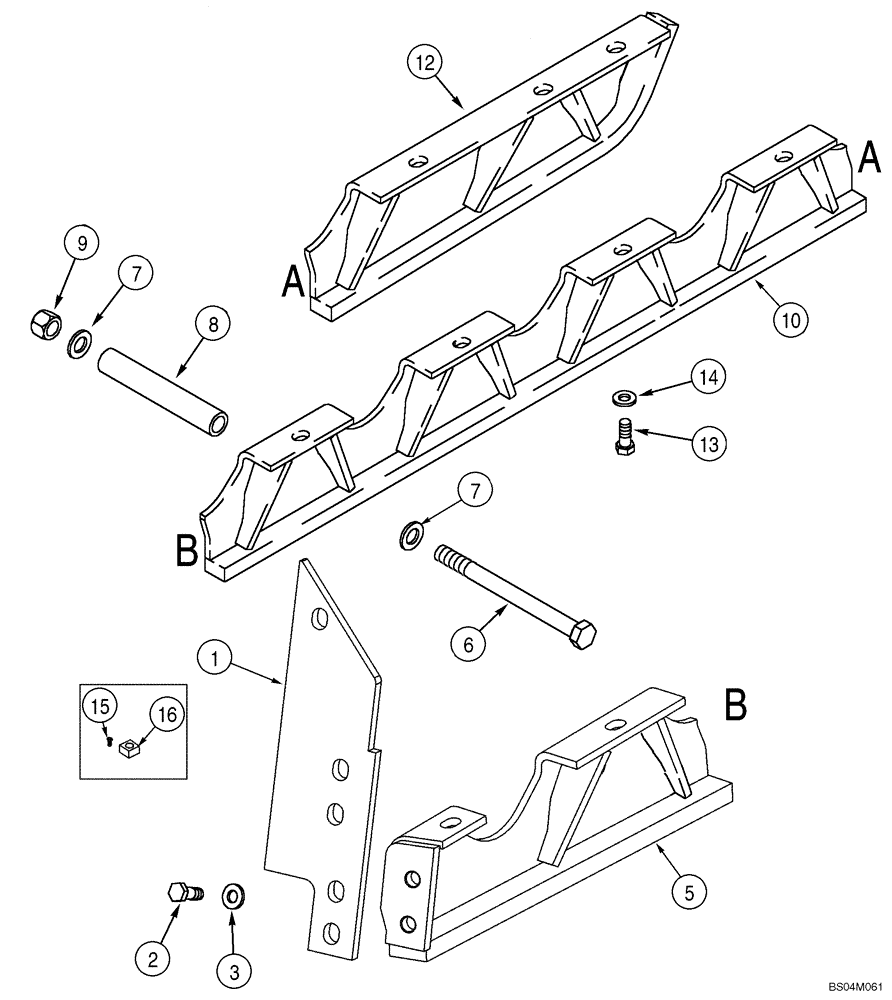

Запчасти Case 650K (05-08) - TRACK GUARDS (11) - TRACKS/STEERING

1

87353990

COVER, REAR, Replaces 430909A1

4шт.

2

409-91024

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

20шт.

3

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

20шт.

4

429528A1

GUARD ASSY.

Left-Hand Rear; Not Illustrated

2шт.

5

429527A1

GUARD ASSY.

Right-Hand Rear

2шт.

6

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

8шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

16шт.

8

141188A1

SPACER

8шт.

9

231-41112

LOCK NUT,3/4"-10, GB

8шт.

10

427054A1

GUARD ASSY.

Center

4шт.

11

430110A1

GUARD

Left-Hand Front; Not Illustrated

2шт.

12

430111A1

GUARD

Right-Hand Front

2шт.

13

87018373

BOLT,Hex, 1/2" - 13 x 1.25", Gr 5, Full Thd

36шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

36шт.

15

129-860

SQUARE NUT,Sq, 5/8"-11

4шт.

16

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.
