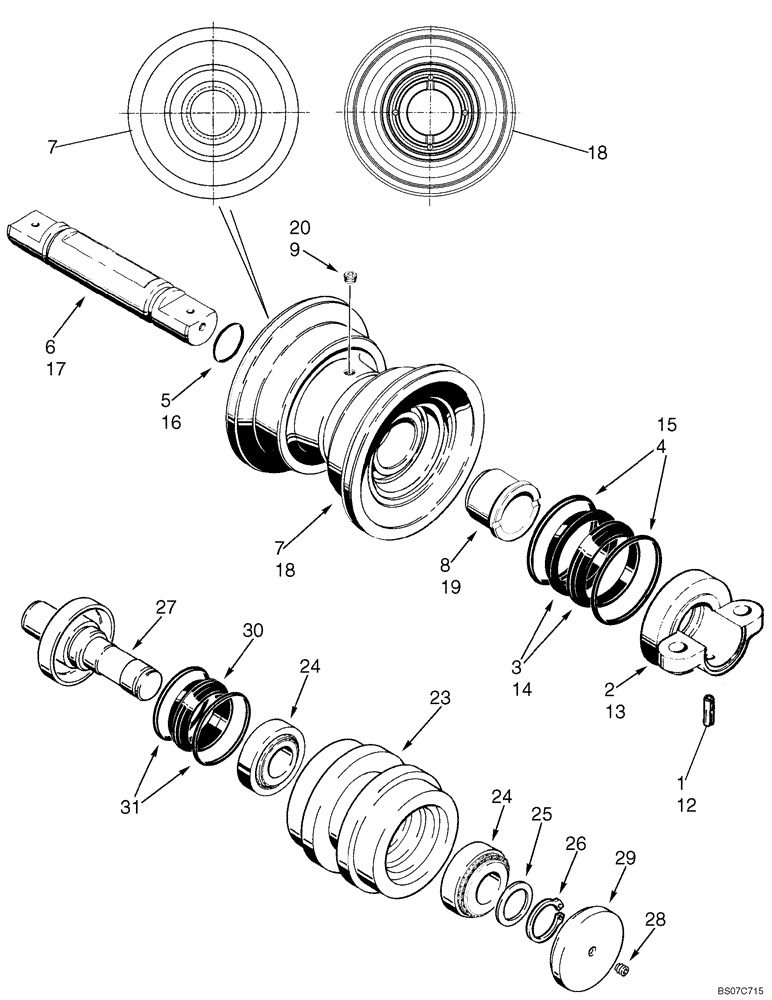

Запчасти Case 650K (05-07) - TRACK ROLLER (11) - TRACKS/STEERING

427112A1

ROLLER, TRACK

Incl. Ref 1 - 9; Without Lubrication Ports; No Longer Available, Order 87581948, Track Roller

12шт.

1

R33570

PIN

Roll

2шт.

2

427109A1

BRACKET

2шт.

S113075

SEAL

Incl. Ref 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

2шт.

4

N6846

O-RING,75.7mm ID x 9.5mm Width

Face Seal

2шт.

5

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

6

R33569

SHAFT

1шт.

7

NSS

NOT SOLD SEPARAT

Hub

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

2шт.

9

R33557

PLUG

1шт.

87581948

TRACK ROLLER

Assy, Painted, Incl. Ref 12 - 20, With Lubrication Ports; Includes 87581946

12шт.

87581946

TRACK ROLLER

Primered; Incl. Ref 12 - 20

1шт.

12

R33570

PIN

2шт.

13

427109A1

BRACKET

2шт.

S113075

SEAL

Incl. Ref 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

Seal

2шт.

15

N6846

O-RING,75.7mm ID x 9.5mm Width

2шт.

16

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

17

R33569

SHAFT

1шт.

18

NSS

NOT SOLD SEPARAT

Hub

1шт.

19

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

2шт.

20

R33557

PLUG

1шт.

REF

INSTRUCTION

ROLLER CARRIER ASSEMBLY

1шт.

419373A1

ROLLER, TRACK

Carrier; Incl. Ref 23 - 31; Service As A Complete Assembly

2шт.

23

NSS

NOT SOLD SEPARAT

Hub

1шт.

24

3142394R91

TAPERED BEARING

2шт.

25

198945A1

SPACER

1шт.

26

800-5140

SNAP RING,M40, Ext, Hvy

1шт.

27

198946A1

SHAFT ASSY.

1шт.

28

R33557

PLUG

1шт.

29

NSS

NOT SOLD SEPARAT

Cover, Carrier Roller End

1шт.

R33607

SEAL

Face; Incl. Ref 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

Seal

2шт.

31

N6847

O-RING,75mm ID x 8mm Width

2шт.
