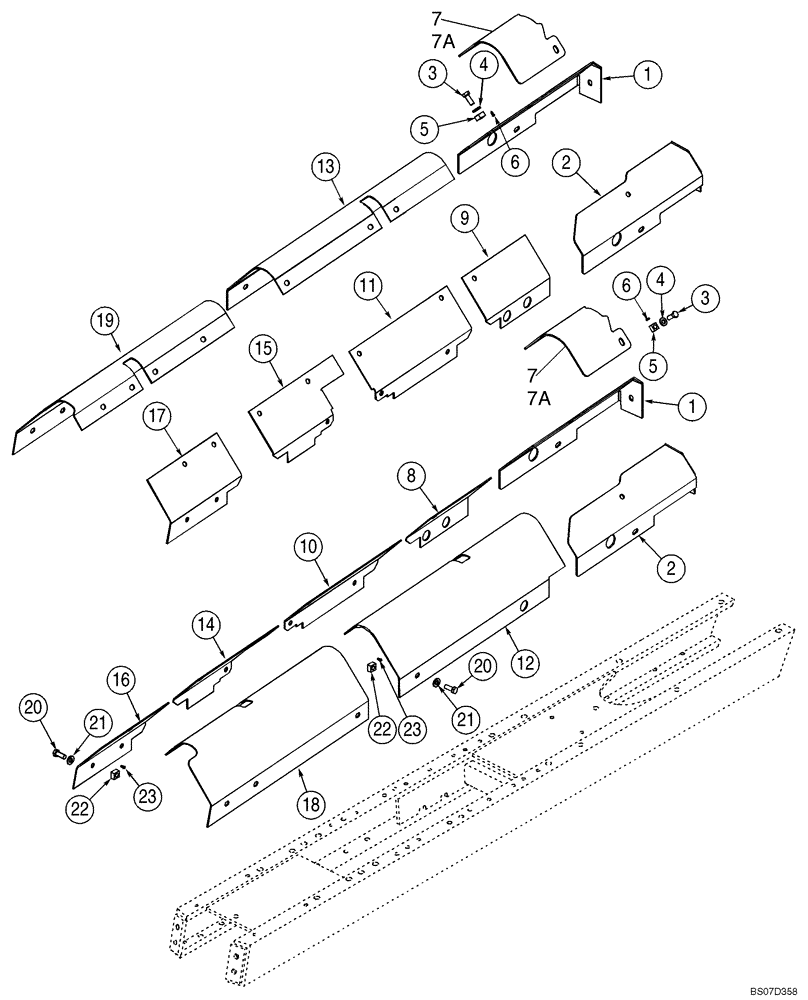

Запчасти Case 650K (05-02A) - FRAME, TRACK - COVERS (11) - TRACKS/STEERING

ref

REF

INSTRUCTION

Larger Cutouts allowing 87565113 Track Frame Spacer Plate to be used between Main Frame and Track Frame; See Fig. 09-08, Ref 36 for Spacer Plate

1шт.

87582609

Kit, Track Covers; Incl. 1, 2, 7, 8 - 19; Not Serviced, Order Components, If Used

1шт.

87554307

KIT, Track Covers; Incl. 1, 2, 7A, 8 - 19; Not Serviced, Order Components, If Used

1шт.

1

436963A1

COVER ASSY

Idler; Left-Hand

2шт.

2

436966A1

COVER ASSY

Idler; Right-Hand

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

3a

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

Not Illustrated

4шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

5

129-857

SQUARE NUT,Sq, 1/2"-13

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

7

436969A1

COVER ASSY

Idler, 235 mm Length (9 1/4 in); If Used

2шт.

7a

87566805

TOP COVER

COVER ASSY, Idler Top, Length 260.4 mm (10 1/4 in), If Used

2шт.

8

87582608

COVER ASSY

Cover Assy, Right-Hand; Inner

1шт.

9

87582603

COVER ASSY

Cover Assy, Left-Hand; Inner

1шт.

10

87582607

COVER ASSY

Cover Assy, Right-Hand; Inner

1шт.

11

87582602

COVER ASSY

Cover Assy, Left-Hand; Inner

1шт.

12

87585234

COVER ASSY

Cover Assy, Right-Hand; Outer

1шт.

13

87585233

COVER ASSY

Cover Assy, Left-Hand; Outer

1шт.

14

87582606

COVER ASSY

Cover Assy, Right-Hand; Inner

1шт.

15

87582601

COVER ASSY

Cover Assy, Left-Hand; Inner

1шт.

16

87582605

COVER ASSY

Cover Assy, Right-Hand; Inner

1шт.

17

87582604

COVER ASSY

Cover Assy, Left-Hand; Inner

1шт.

18

87585231

COVER ASSY

Cover Assy, Right-Hand; Outer

1шт.

19

87585232

COVER ASSY

Cover Assy, Left-Hand; Outer

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

42шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

42шт.

22

129-857

SQUARE NUT,Sq, 1/2"-13

38шт.

23

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

42шт.
