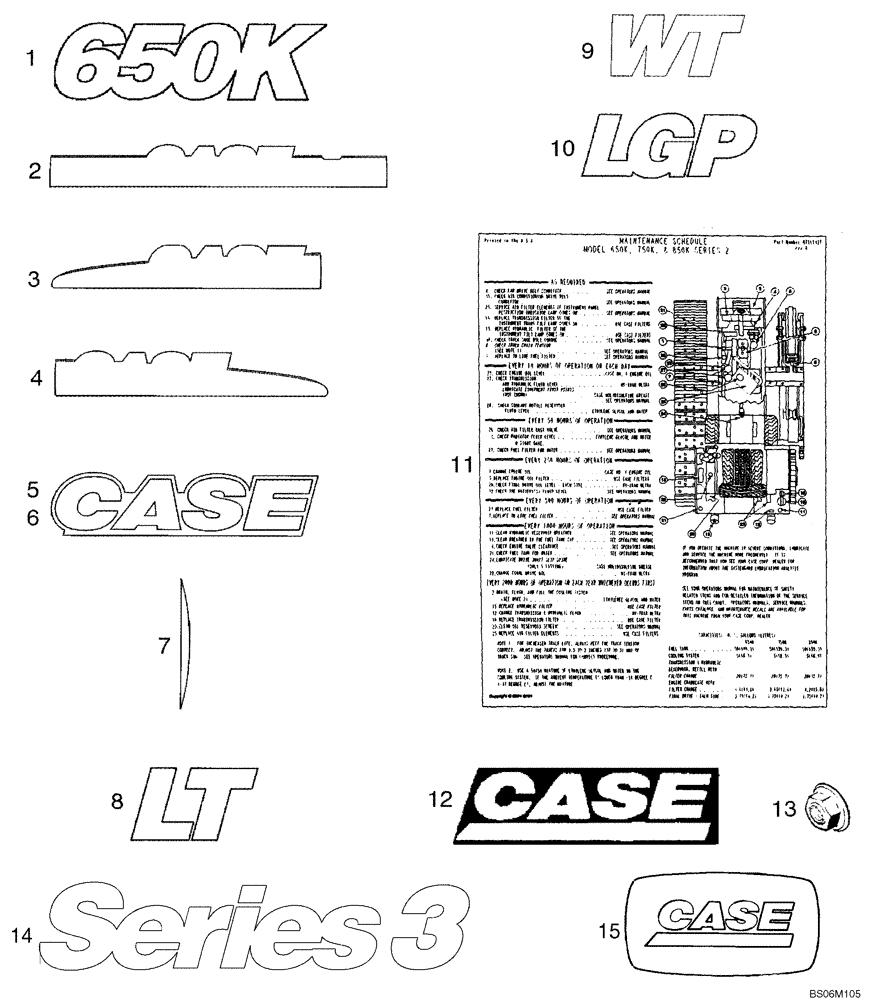

Запчасти Case 650K (09-41) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS
11
13
15
8
14
7
12
9
10
6
3
2
1
5
4
№
Артикул
Название
Примечание
Количество
1
86992253
DECAL
Model, 650K
2шт.
2
86992257
DECAL
Case, Rear
1шт.
3
86992258
DECAL
Case, Left Rear
1шт.
4
86992259
DECAL
Case, Right Rear
1шт.
5
87408280
DECAL
164 x 722 mm lg; Case, Rear Side
2шт.
6
87408281
DECAL
182 x 786 mm lg; Case, Rear
1шт.
7
87407618
DECAL
Edge
2шт.
8
87408278
DECAL
Long Track (LT) Models
2шт.
9
87408275
DECAL
Wide Track (WT) Models
2шт.
10
87408279
DECAL
Low Ground Pressure (LGP) Models
2шт.
11
87624721
DECAL
Maintenance Schedule Decal
1шт.
12
186989A1
EMBLEM
Emblem, Case; Front Grille
1шт.
13
131-431
PUSH-ON NUT,Self, Threading, 1/4"
Case Emblem
2шт.
14
87412815
DECAL
Series 3
2шт.
15
87415931
DECAL
Case, Engine
3шт.
Выбрано товаров: 15
