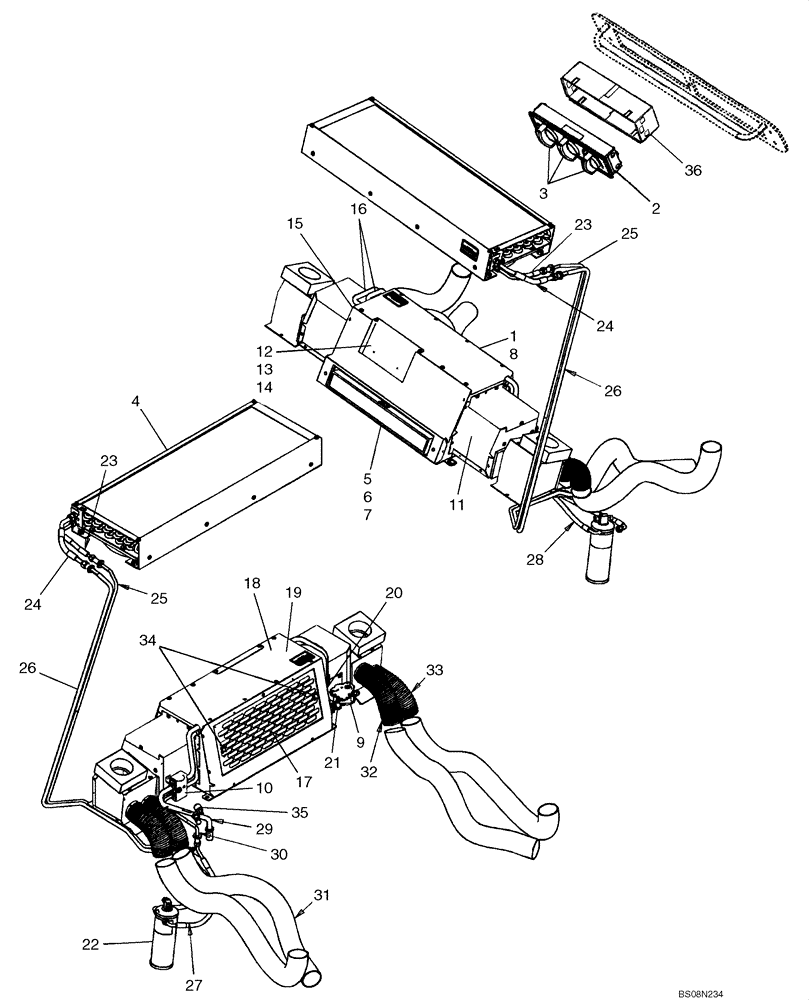

Запчасти Case 650K (09-34) - CAB - HEATER AND AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

87550939

Heater Unit; HVAC Unit, 12V; Complete Unit with Cores, Expansion Valve, and Heater Valve

1шт.

2

87397412

CONTROL

HVAC Control, 24V; Incl. Knobs, Ref 3; For Component Parts See Fig 09-34A

1шт.

3

87058322

KNOB

3шт.

4

87550940

CONDENSER

ASSEMBLY; See Figure 09-36

1шт.

5

87615067

AIR FILTER

FILTER, AIR

1шт.

6

87397414

CAB FILTER

Recirculation Filter

1шт.

7

87586965

GASKET

Fresh Air Seal

1шт.

8

87586950

WIRE HARNESS

HVAC Unit Harness; Internal to HVAC Heater Unit, Ref 1

1шт.

8

87731944

WIRE HARNESS

HVAC Unit Harness W/ Relay; Internal to HVAC Heater Unit, Ref 1

1шт.

9

87586951

VALVE

Water Heater

1шт.

10

87586952

VALVE

EXPANSION VALVE, TXV

1шт.

11

87587512

MOTOR

Blower Motor, 12V; Internal Fan

2шт.

12

87587511

RESISTOR

Blower; SEE NOTES FOR OTHER OPTIONS AND BEFORE ORDERING

1шт.

13

87723920

THERMOSTAT

Thermostat, 12V, Electrical

1шт.

14

87586961

GUARD

Resistor

1шт.

15

87586962

GROMMET

Wire

1шт.

16

87586963

GROMMET

Tube

2шт.

17

87586964

GRILLE ASSY

Recirc. Air Filter

1шт.

18

87586966

CORE

Heater

1шт.

19

87586967

EVAPORATOR

Evaporator Core

1шт.

20

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

1шт.

21

1954736C1

HOSE CLAMP,#24

2шт.

22

87696535

RECEIVER-DRYER,Air Conditioner

1шт.

23

87586971

HOSE ASSY.,9.53mm ID x 178.05mm L

Lower at Condenser

1шт.

24

87586972

A/C HOSE

Upper

1шт.

25

87586977

TUBE,.375" OD

From Lower Hose At Condenser

1шт.

26

87586978

TUBE,.5" OD

From Upper Hose At Condenser

1шт.

27

87586974

HOSE ASSY.

at Receiver Dryer

1шт.

28

87586973

HOSE ASSY.

at Receiver Dryer

1шт.

29

87586976

TUBE,.625" OD

Upper at Expansion Valve

1шт.

30

87586975

TUBE,.375" OD

Lower at Expansion Valve

1шт.

31

87551011

HOSE,63.50 mm ID x 190.00 mm

Duct Work

4шт.

32

87551013

HOSE,63.50 mm ID x 396.00 mm

Inner

2шт.

33

87551012

HOSE,63.50 mm ID x 1016.00 mm

Outer

2шт.

34

87586960

KNOB

Holds Grill On

2шт.

35

284272A3

SWITCH, A/C LOW PRES

1шт.

36

87281122

SLEEVE

Heater/AC Control Sleeve

1шт.

37

87727235

HOSE,14.30 mm ID x 675 mm

Drain (Not shown)

1шт.

760-14613

SELF-TAP SCREW,Pan Hd, M6.3 x 13

54шт.

87586958

NUT

U Clamp M6

27шт.

779-34395

SELF-TAP SCREW,Hex Hd, M4.8 x 9.5

2шт.

87489761

REPAIR KIT

Includes; 1) Resistor and 1) Access Panel and Instructions; SEE NOTES BEFORE ORDERING

1шт.

87489763

RESISTOR

SEE NOTES BEFORE ORDERING

1шт.
