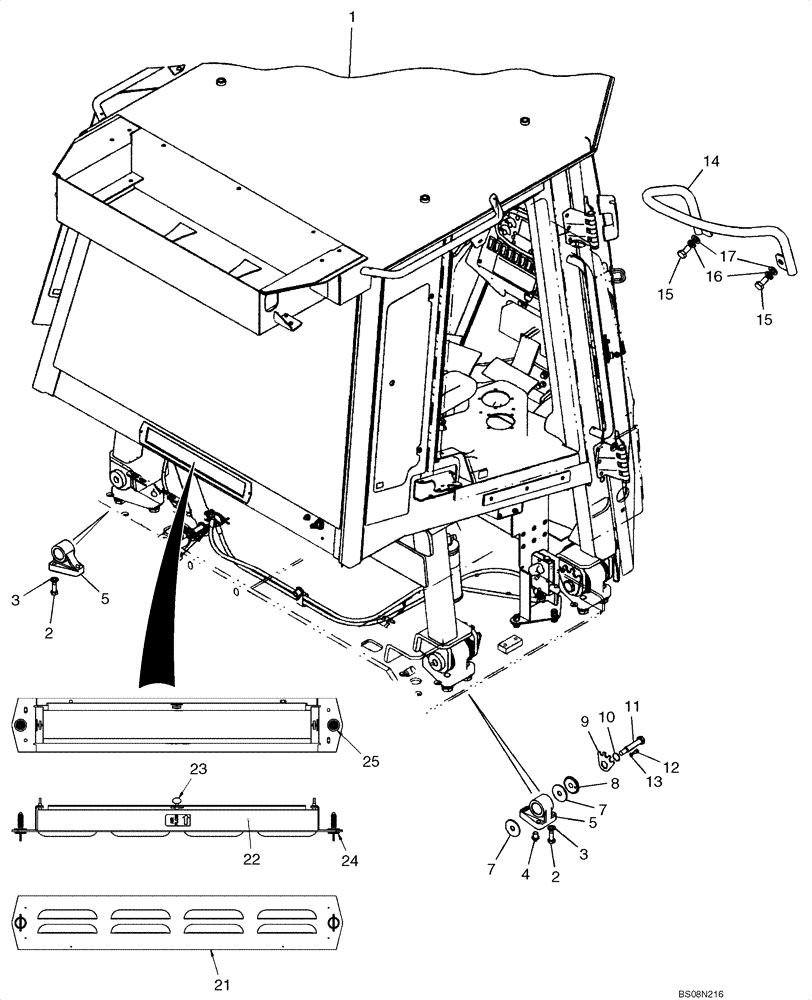

Запчасти Case 650K (09-25) - CAB - FRAME, MOUNTING AND GRAB HANDLES & EXTERNAL CAB FILTER (09) - CHASSIS/ATTACHMENTS

87546417

CAB

ASSEMBLY; Includes Frame, Doors, Glass, Consoles, Front Wiper; Order From Machinery Price List

1шт.

1

87550929

Frame, Cab Assembly; Order From Machinery Price List

1шт.

2

11383631

BOLT,Hex, M20 x 1.5 x 50, 10.9, Full Thd

Replaces 514-1211 Bolt, Hex, M20 x 1.5 x 45, 10.9; Use dOn Some Models

12шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

4

87311743

SPECIAL PIN

Alignment; Right-Hand Side Only, 45.2 mm Long

2шт.

5

86983061

SUPPORT ASSY.

Includes (2) 79060730 Bushings; With Hole For Alignment Pin, Ref 4

4шт.

79060730

BUSHING

2шт.

7

79085441

WASHER,24.6mm ID x 90mm OD x 5mm Thk

8шт.

8

79084966

BUSHING

4шт.

9

79093828

PLATE

4шт.

10

13398976

SNAP RING,M40, Int

4шт.

11

79093830

SCREW,Hex, M24 x 2 x 150mm

4шт.

12

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

448838A1

HANDLE

Grab, Front

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

87749407

KIT

External Cab Air Filter; Includes Ref, 20-24

1шт.

21

87719496

FRAME

Fresh Air Filter

1шт.

22

87615067

AIR FILTER

External

1шт.

23

87748826

THUMB SCREW

3шт.

24

87551004

THUMB SCREW,M8 x 48.10mm

2шт.

25

87551005

SEALING WASHER

2шт.
