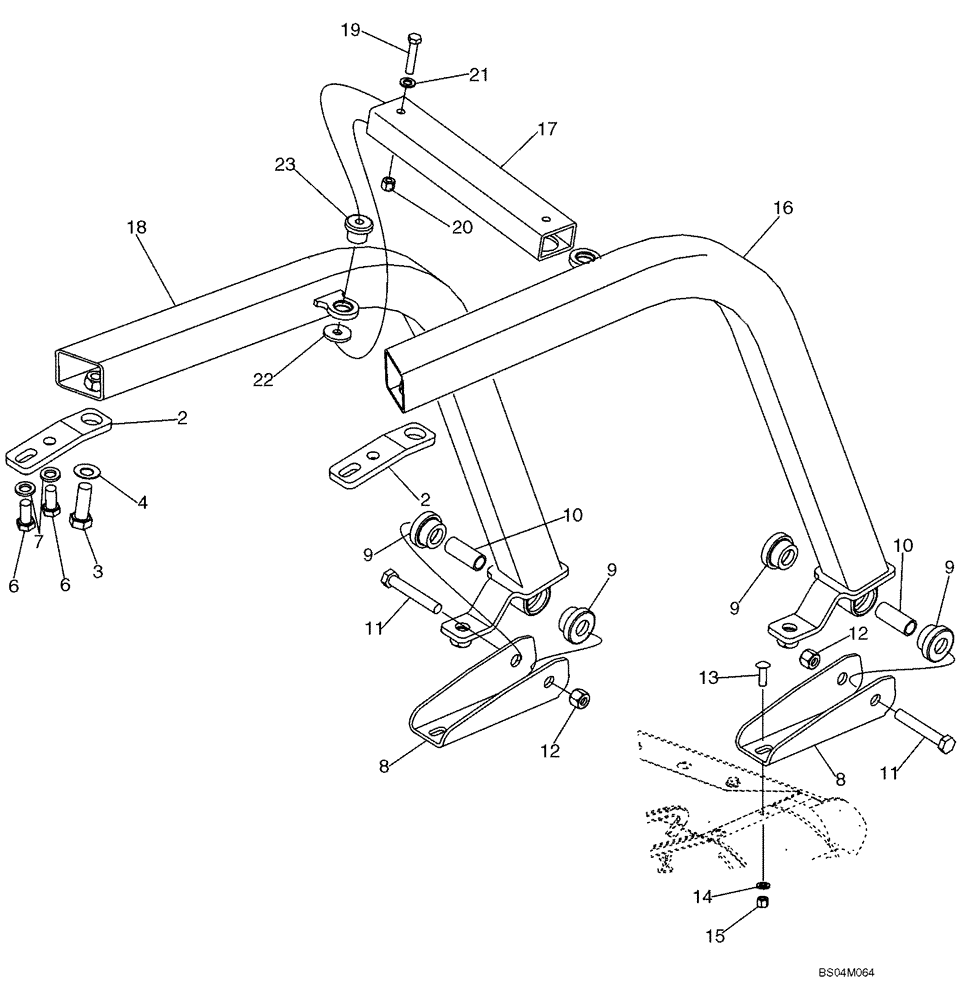

Запчасти Case 650K (09-22) - CANOPY, ROPS - GUARD, BRUSH (09) - CHASSIS/ATTACHMENTS

1

87449388

GUARD ASSY.

Brush; Bolted Assy; Incl. 16 -23

1шт.

2

436119A4

MOUNTING PLATE

2шт.

3

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

Replaces 627-20055 Bolt M20 x 55, 10.9 Used on Some Models

2шт.

4

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

2шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

434374A2

CHANNEL

2шт.

9

R40721

GROMMET

Insulator

4шт.

10

R40954

BUSHING

2шт.

11

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

12

832-10416

NUT,M16 x 2, Cl 8

2шт.

13

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

87457206

TUBE,1102.8, 748.6 mm L

Brush Guard; Right Hand

1шт.

17

434368A2

TUBE

Brush Guard; Cross

1шт.

18

87457207

TUBE,1102.8, 748.6 mm L

Brush Guard; Left Hand

1шт.

19

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

21

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

22

D25022

WASHER

Pin Link Pocket

2шт.

23

R29799

SHOCK ABSORBER

Isolator

2шт.
