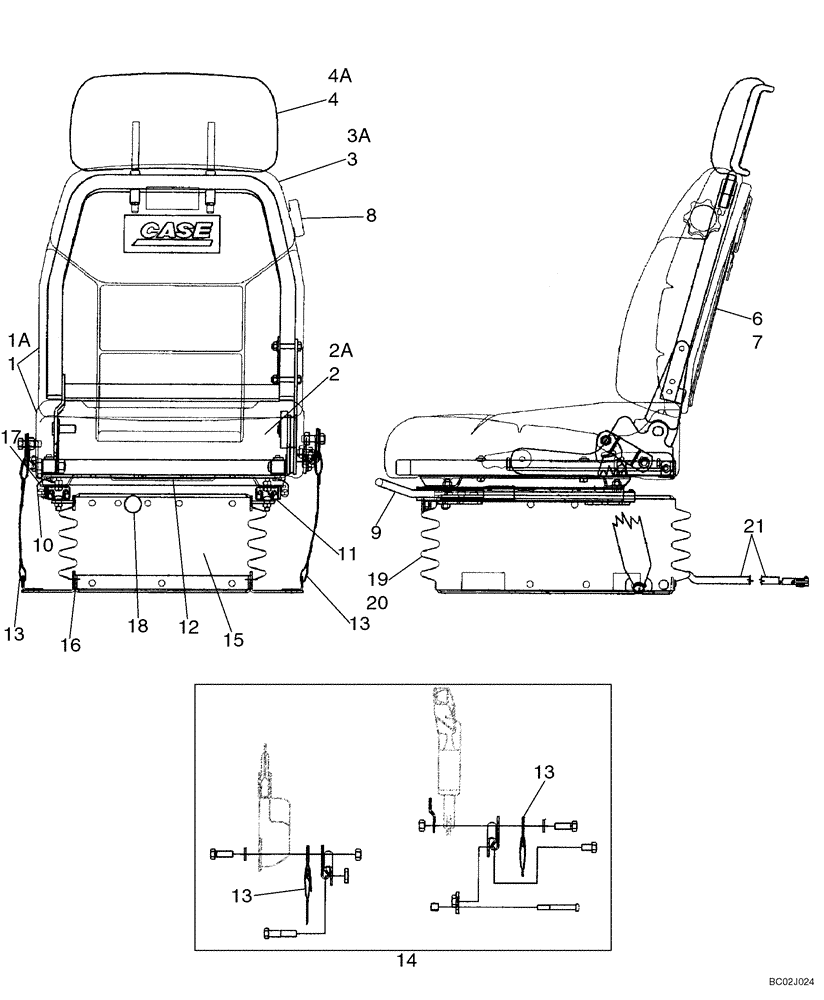

Запчасти Case 650K (09-17) - SEAT ASSY, AIR SUSPENSION (09) - CHASSIS/ATTACHMENTS

446396A2

SEAT ASSY.

Air Suspension; Vinyl; Incl. Ref 1, 2, 3, 4, 5 - 21

1шт.

429469A2

SEAT ASSY.

Air Suspension; Cloth; Incl. Ref 1A, 2A, 3A, 4A, 5 - 21

1шт.

1

86990104

SEAT ACCESSORY

Seat; Vinyl; Includes Seat and Backrest Cushion

1шт.

1a

86990124

SEAT ACCESSORY

Seat; Cloth; Includes Seat and Backrest Cushion

1шт.

2

86990105

SEAT ACCESSORY

Cushion, Seat; Vinyl

1шт.

2a

86990125

SEAT ACCESSORY

Cushion, Seat; Cloth

1шт.

3

86990106

SEAT ACCESSORY

Backrest Cushion; Vinyl

1шт.

3a

86990126

SEAT ACCESSORY

Backrest Cushion; Cloth

1шт.

4

86990107

SEAT ACCESSORY

Backrest, Upper; Vinyl

1шт.

4a

86990127

SEAT ACCESSORY

Backrest, Upper; Cloth

1шт.

5

176091A1

PACKAGE,SERVICE

Kit, Hog Ring; Cushion Retainer; Package Of 50; Not Illustrated

1шт.

87405470

SEAT ACCESSORY

Cover, Back; Includes Manual Holder; Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Back; Includes Manual Holder

1шт.

7

1999693C1

KIT

Clip; Package Of 12

1шт.

8

1987212C1

PACKAGE

Back Tilt Knob; Includes Knob, Handle, Screw

1шт.

9

87405471

SEAT ACCESSORY

Lever, Slide Release

1шт.

10

86990111

SEAT ACCESSORY

Slide; 6 in. Travel

1шт.

11

86990112

SEAT ACCESSORY

Slide; 6 in. Travel

1шт.

12

182991A1

LARGE PLATE

PLATE, LARGE Adapter

1шт.

13

86990113

BELT

Tether

2шт.

14

389085A1

KIT

Seat Belt Mounting; Includes (2) Brackets, (3) Spacers, (1) Plate, (6) Bolts, (2) Nuts

1шт.

15

86990128

SEAT ACCESSORY

Suspension Assembly, Air; Boxed

1шт.

1344249C1

KIT

Kit, Roller Tube Bearing; Includes (4) Tube Bearings, (6) Rollers, (2) Suspension Shock Bearings, (1) 131-425 Push Nuts, (1) A45519 Plastic Washer

1шт.

197793A1

SPRING

Kit, Air Spring; Includes (1) Spring, (1) J-Clamp, (3) L18337 Tie Straps

1шт.

86990132

SEAT ACCESSORY

Shaft; Bearing

2шт.

86990131

SEAT ACCESSORY

Arm, Suspension

1шт.

16

86990129

SEAT ACCESSORY

Housing; Lower; Boxed

1шт.

17

86990130

SEAT ACCESSORY

Housing; Upper; Boxed

1шт.

389282A1

KIT

Shock Absorber; Includes (1) Shock, (2) Bearings, (1) Push Nut

1шт.

86990133

SEAT ACCESSORY

Kit, Air Compressor

1шт.

1981852C3

SWITCH

Valve, Air Control; Incl. Ref 18

1шт.

18

1987186C2

KNOB

Knob, Air Control Valve; Includes Set Screw

1шт.

133422A1

BUMPER

1 inch Diameter; Round

2шт.

A45054

BUMPER,Neoprene

1 x 1 in.; Square

1шт.

180593A1

KIT

Kit, Bumper; Includes (2) Bumpers, (2) Spacers, (2) 340-12520 Screws, (2) 231-1444 Nuts

1шт.

1990647C2

KIT

Kit, Boot; Incl. Ref 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Boot

1шт.

20

132872A1

KIT

Boot Retainer; Includes (20) Retainers, (3) Push Nuts, (3) Clips

1шт.

21

389281A1

HARNESS

1шт.
