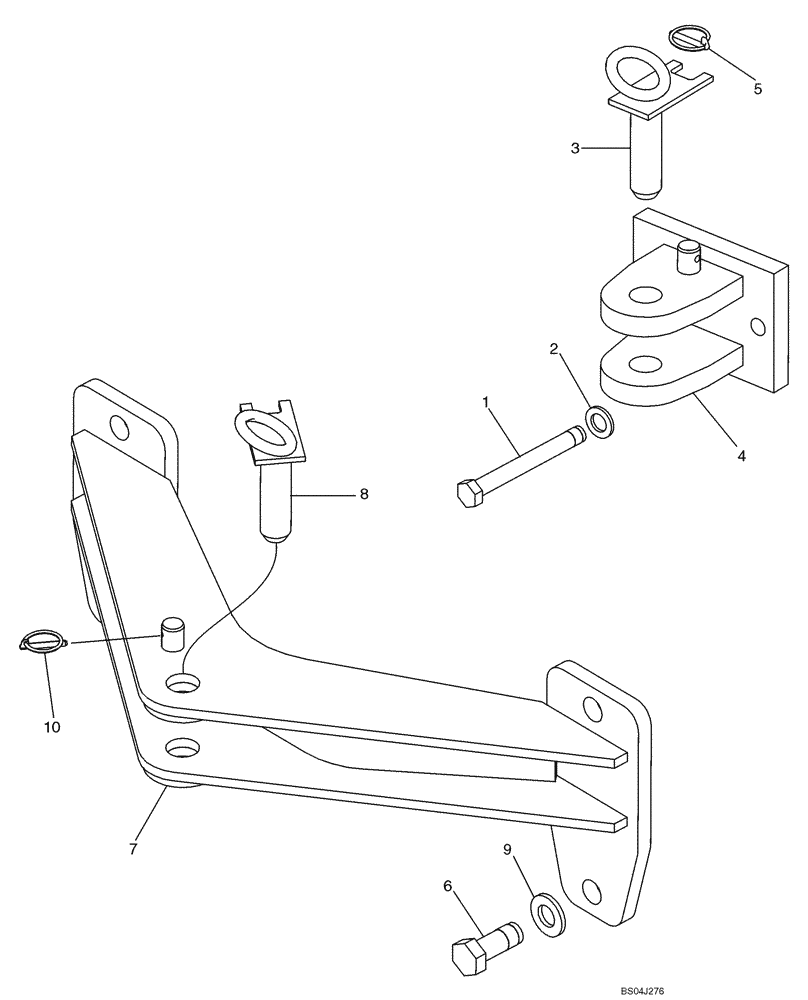

Запчасти Case 650K (09-07) - DRAWBAR - HOOK, TOWING (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

REAR TOWING HOOK

1шт.

1

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

3

431997A1

TOWBAR PIN

1шт.

4

436059A1

HOOK

Rear Towing; Uses Existing Transmission Bolts

1шт.

5

A30338

PIN

Lock

1шт.

REF

INSTRUCTION

DRAWBAR

1шт.

6

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

4шт.

7

431948A1

DRAWBAR

1шт.

8

431997A1

TOWBAR PIN

1шт.

9

496-31106

WASHER,1 1/16" x 2" x .219", HDN

4шт.

10

A30338

PIN

Lock

1шт.
