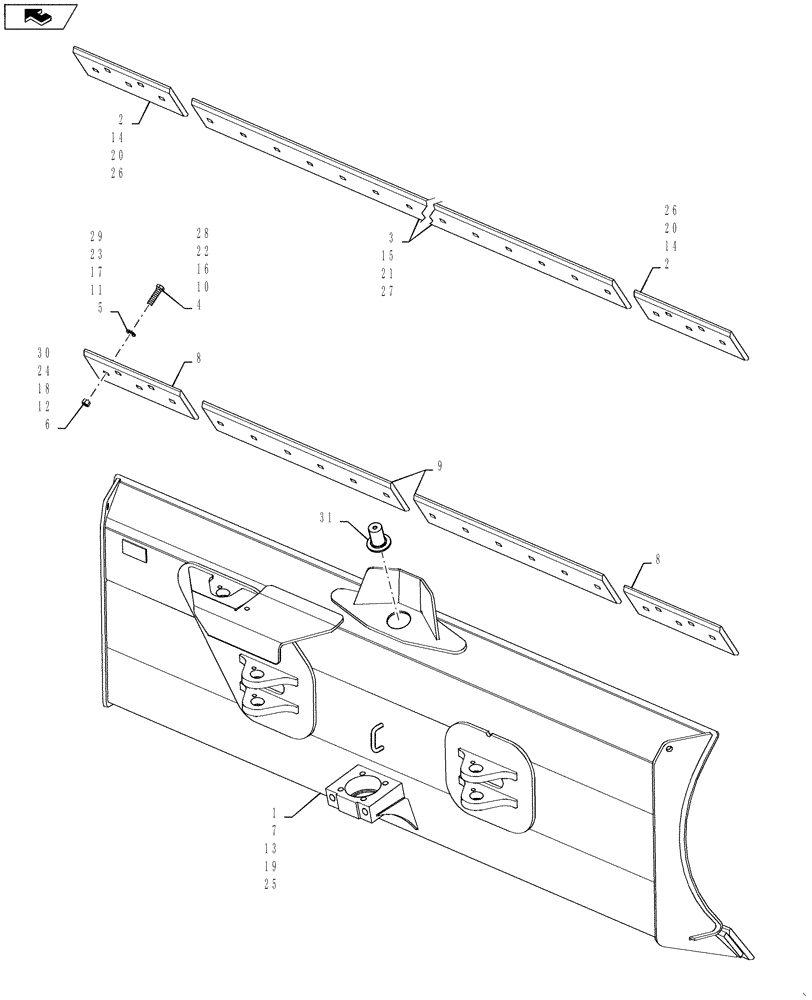

Запчасти Case 650K (09-03) - BLADE, DOZER - EDGES, CUTTING (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

IF BLADE USES THE STANDARD FLAT CUTTING EDGE (R42490), THEN THESE HEAVY DUTY CURVED CUTTING EDGES WILL WORK

1шт.

R41911

EDGE, CUTTING

Heavy Duty Curved Cutting Edges; R.H.; If Used

1шт.

R41910

EDGE, CUTTING

Heavy Duty Curved Cutting Edges; L.H.; If Used

1шт.

REF

INSTRUCTION

2489 mm (98 inch) DOZER BLADE

1шт.

87355517

DOZER BLADE

2489 mm (98 inch); Incl. Ref 1 - 6; Replaces 430565A2

1шт.

1

NSS

NOT SOLD SEPARAT

Blade

1шт.

2

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

3

327245A1

EDGE

1598 mm (62-15/16 in); Center Cutting Edge; 10 Bolt Holes

1шт.

4

R56474

PLOW BOLT

3/4 x 2-1/2; 8

20шт.

5

92-11075

LOCK WASHER,3/4"

20шт.

6

29-1012

NUT,3/4"-10, G8

20шт.

REF

INSTRUCTION

2642 mm (104 inch) DOZER BLADE

1шт.

87355520

DOZER BLADE

2642 mm (104 inch); Incl. Ref 7 - 12; Replaces 430566A2

1шт.

7

NSS

NOT SOLD SEPARAT

Blade

1шт.

8

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

9

115631A1

EDGE

867 mm (34-1/8 in); Center Cutting Edge; 6 Bolt Holes

2шт.

10

R56474

PLOW BOLT

3/4 x 2-1/2; 8

22шт.

11

92-11075

LOCK WASHER,3/4"

22шт.

12

29-1012

NUT,3/4"-10, G8

22шт.

REF

INSTRUCTION

2794 mm (110 inch) DOZER BLADE

1шт.

87355522

DOZER BLADE

2794 mm (110 inch); Incl. Ref 13 - 18; Replaces 430567A2

1шт.

13

NSS

NOT SOLD SEPARAT

Blade

1шт.

14

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

15

430157A1

CUTTING EDGE

1908 mm (75-1/8 in); Center Cutting Edge; 13 Bolt Holes

1шт.

16

R56474

PLOW BOLT

3/4 x 2-1/2; 8

23шт.

17

92-11075

LOCK WASHER,3/4"

23шт.

18

29-1012

NUT,3/4"-10, G8

23шт.

REF

INSTRUCTION

3048 mm (120 inch) DOZER BLADE

1шт.

87355524

DOZER BLADE

3048 mm (120 inch); Incl. Ref 19 - 24; Replaces 430569A2

1шт.

19

NSS

NOT SOLD SEPARAT

Blade

1шт.

20

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

21

327539A1

EDGE

2158 mm (85 in); Center Cutting Edge; 14 Bolt Holes

1шт.

22

R56474

PLOW BOLT

3/4 x 2-1/2; 8

24шт.

23

92-11075

LOCK WASHER,3/4"

24шт.

24

29-1012

NUT,3/4"-10, G8

24шт.

REF

INSTRUCTION

3150 mm (124 inch) DOZER BLADE

1шт.

87355525

DOZER BLADE

3150 mm (124 inch); Incl. Ref 25 - 30

1шт.

25

NSS

NOT SOLD SEPARAT

Blade

1шт.

26

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

27

126519A1

EDGE

2258 mm (88-7/8 in); Center Cutting Edge; 15 Bolt Holes

1шт.

28

R56474

PLOW BOLT

3/4 x 2-1/2; 8

25шт.

29

92-11075

LOCK WASHER,3/4"

25шт.

30

29-1012

NUT,3/4"-10, G8

25шт.

31

419235A1

PIN,44.42mm OD x 89.8mm L

Pitch Pin; Pitchdozer Pivot; Welded

1шт.
