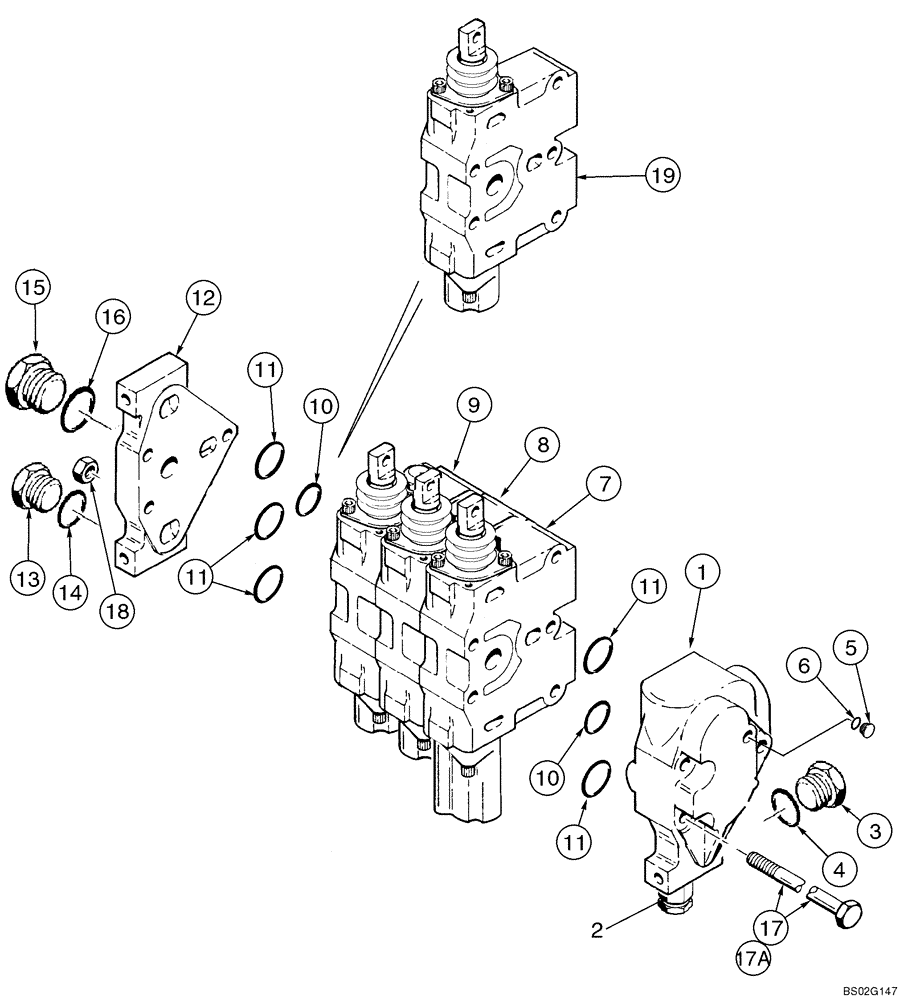

Запчасти Case 650K (08-18) - VALVE, CONTROL (08) - HYDRAULICS

87311632

HYDRAULIC VALVE

Three Spool Control Valve; Incl. Ref 1 - 17, 18

1шт.

87311631

HYDRAULIC VALVE

Four Spool Control Valve; Incl. Ref 1 - 16, 17A - 19

1шт.

1

87402654

HYD VALVE SECTION

Inlet and Outlet; Includes Main Relief Valve; Incl. Ref 2 - 6

1шт.

2

N8191

VALVE

Main Relief; See Figure 08-19

1шт.

3

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. Ref 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

9672438

PLUG,7/16" - 20 ORB

Incl. Ref 6

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

87402656

HYD VALVE SECTION

Lift Control; See Figure 08-20

1шт.

8

87402657

HYD VALVE SECTION

Tilt Control; See Figure 08-21

1шт.

9

87402658

HYD VALVE SECTION

Angle Control; See Figure 08-21

1шт.

10

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

5 Used On Three Spool Valve; 6 Used On Four Spool Valve

5-6шт.

11

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

11 Used On Three Spool Valve; 14 Used On Four Spool Valve

11-14шт.

12

100825A1

COVER

Incl. Ref 13 - 16

1шт.

13

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Incl. Ref 14

1шт.

14

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

Three Spool Valve

3шт.

17a

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

Four Spool Valve

3шт.

18

425-106

NUT,3/8"-16, Cl 5

3шт.

19

87402659

HYD VALVE SECTION

Auxiliary/Ripper Control; See Figure 08-21

1шт.
