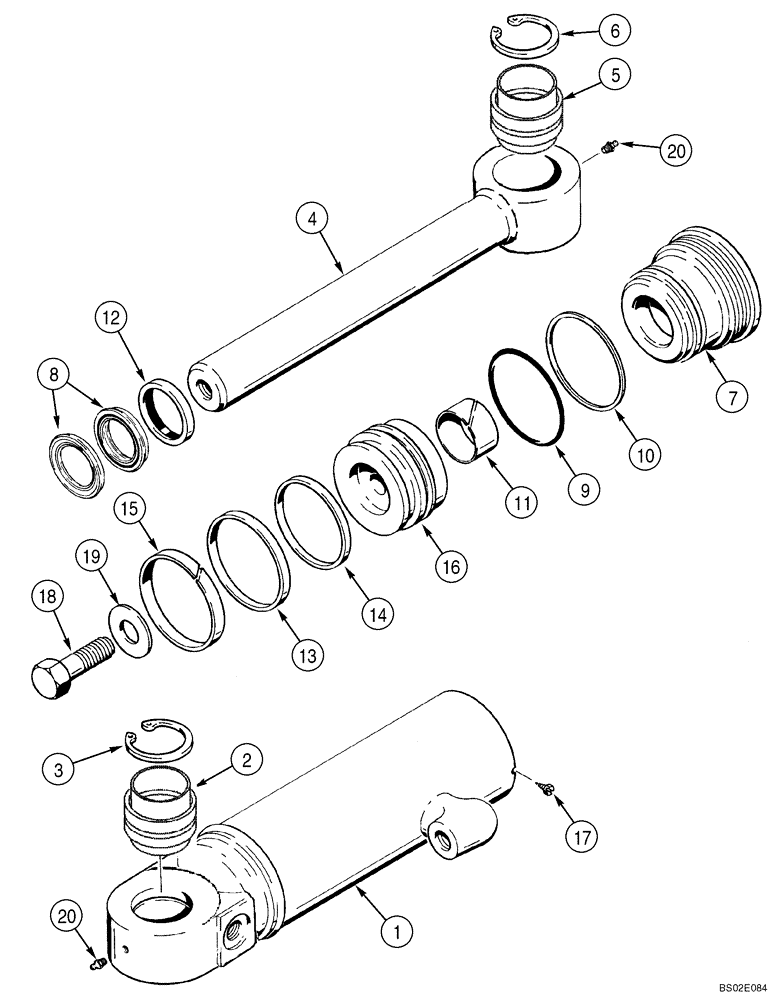

Запчасти Case 650K (08-12) - CYLINDER ASSY - TILT (08) - HYDRAULICS

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

Port Plugs; Not Illustrated

2шт.

412357A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 147.8mm Stroke

89 ID x 148 mm Stroke; Tilt; Incl. Ref 1 - 20

1шт.

412357A1R

REMAN-HYD CYLINDER

650K SERIES 3 CRAWLER TIER 2 (12/06-)

1шт.

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

430288A1

TUBE

1шт.

2

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

4

430292A1

ROD ASSY.

45 mm (1-3/4 inch) dia

1шт.

5

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

6

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

7

355529A1

GLAND

1шт.

1543266C1

SEAL KIT

Incl. Ref 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Kit, Seal; Order 1543266C1

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

11

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

12

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

1986981C1

PISTON ASSY.

Incl. Ref 13 - 16

1шт.

13

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

14

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

15

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

16

1986982C1

PISTON

1шт.

17

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

18

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

19

REF

INSTRUCTION

Washer Component Of Ref 18

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
