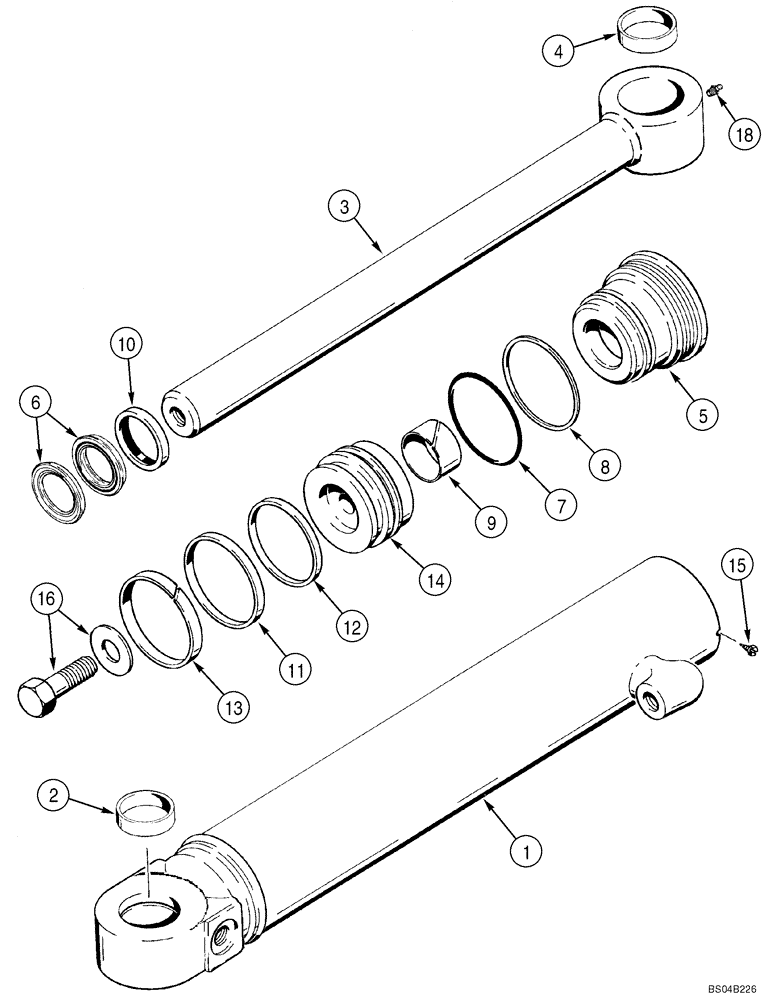

Запчасти Case 650K (08-11) - CYLINDER ASSY - LIFT (08) - HYDRAULICS

417854A1

CYLINDER ASSY.

89 ID x 395 mm Stroke; Lift; Incl. Ref 1 - 18

2шт.

87361535R

REMAN-HYD CYLINDER

650K SERIES 3 CRAWLER TIER 2 (12/06-), Reman for New PN 417854A1

2шт.

87361535C

CORE-HYD CYLINDER

Return Number

2шт.

1

405297A1

TUBE

Incl. Ref 2

1шт.

2

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

3

405299A1

PISTON ROD,44.4mm OD x 585.6mm L

45 mm (1-3/4 in) dia; Incl. Ref 4

1шт.

4

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

5

355529A1

GLAND

1шт.

1543266C1

SEAL KIT

Incl. Ref 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

Kit, Seal; Order 1543266C1

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

1986981C1

PISTON ASSY.

Incl. Ref 11 - 14

1шт.

11

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

12

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

13

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

14

1986982C1

PISTON

1шт.

15

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
