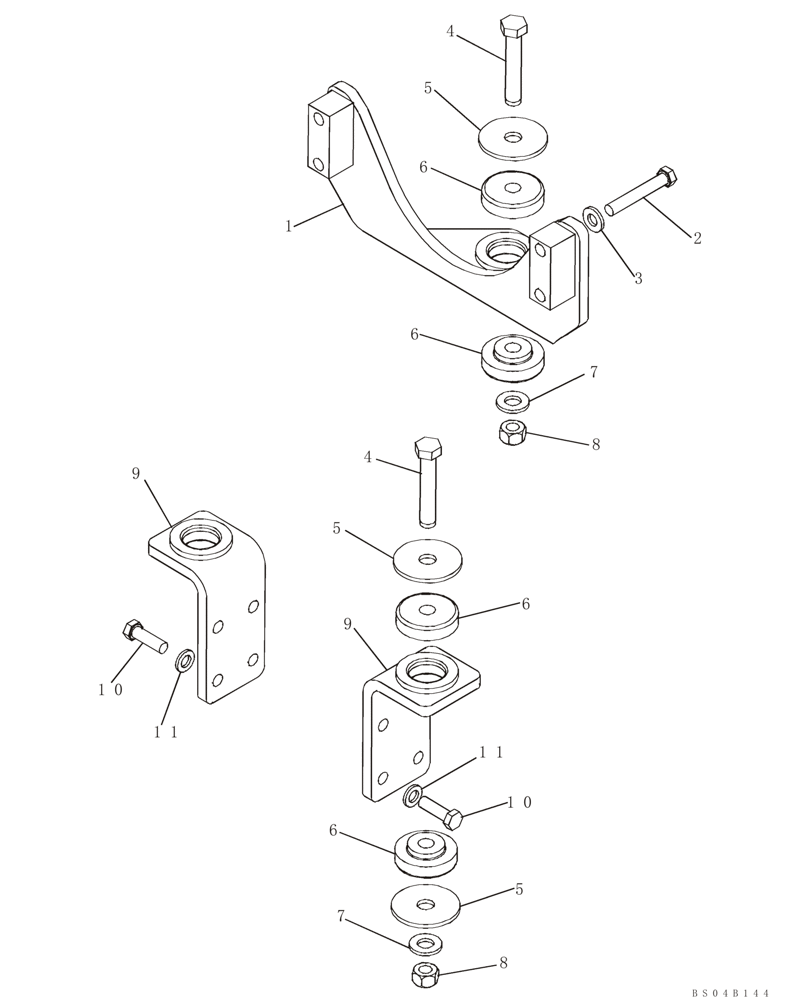

Запчасти Case 650K (02-01) - ENGINE - MOUNTING (02) - ENGINE

1

87432921

ENGINE MOUNT

Front

1шт.

2

A171690

BOLT

M10 x 85; 10.9

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

4

106-91056

LOCK BOLT,Locking, 5/8"-11 x 3 1/2", G5

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

5шт.

6

R49482

RUBBER MOUNTING

6шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

3шт.

8

425-1010

NUT,5/8"-11, G5

3шт.

9

87432310

ENGINE MOUNT

Rear

2шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Replaces 627-12040

8шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.
