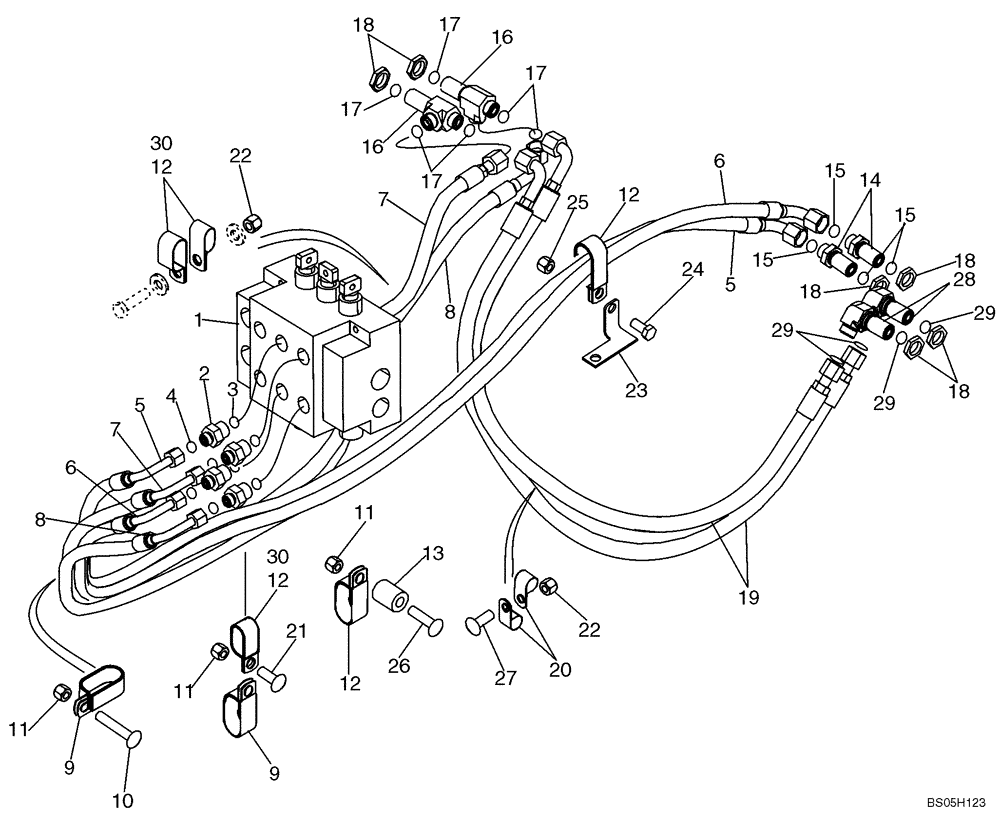

Запчасти Case 650K (08-06) - HYDRAULICS - TILT AND ANGLE CIRCUITS (08) - HYDRAULICS

REF

INSTRUCTION

AT CONTROL VALVE

1шт.

1

87311632

HYDRAULIC VALVE

Three Spool; See Figure 08-18

1шт.

1

87311631

HYDRAULIC VALVE

Four Spool; See Figure 08-18

1шт.

2

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Incl. Ref 3, 4

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

5

436016A1

HOSE ASSY.

1810 mm (71-5/16 in); Tilt; Right-Hand

1шт.

6

436017A1

HOSE ASSY.

1705 mm (67-1/8 in); Tilt; Left-Hand

1шт.

7

87442921

HOSE ASSY.

2275 mm (89-1/2 in); Angle; Right-Hand, Top Port, Yellow

1шт.

8

87442922

HOSE ASSY.

2310 mm (91 in); Angle; Left-Hand, Bottom Port, Red

1шт.

9

242999A1

CLAMP

2шт.

10

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

12

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

15.9 mm (5/8) dia

2-5шт.

13

994-12021

SPACER,3/4" Tube x .840"

1шт.

14

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes Ref 15

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

16

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Incl. Ref 17

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

18

443359A1

BHD LOCK NUT

ORFS, Bulkhead, 1/2 tube OD, 13/16 thrd, 6.0 mm (1/4) thick; Replaced By 201-903 Nut On Some Models

6шт.

18

201-903

TUBE NUT,Blkhd, 13/16"-16

Replaces 443359A1 Nut used on some models

6шт.

19

87442923

HOSE ASSY.

1165 mm (45-7/8 in); Angle; Crossover

2шт.

20

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

2шт.

21

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

1шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

23

436894A1

BRACKET, SUPPORTING

1шт.

24

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

25

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

26

811-12055

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 55mm, Cl 8.8

1шт.

27

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

1шт.

28

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 29

2шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

22.9 mm (7/8) dia; Replaces L71188 Clamp Used In Three Locations On Some Models

3шт.
