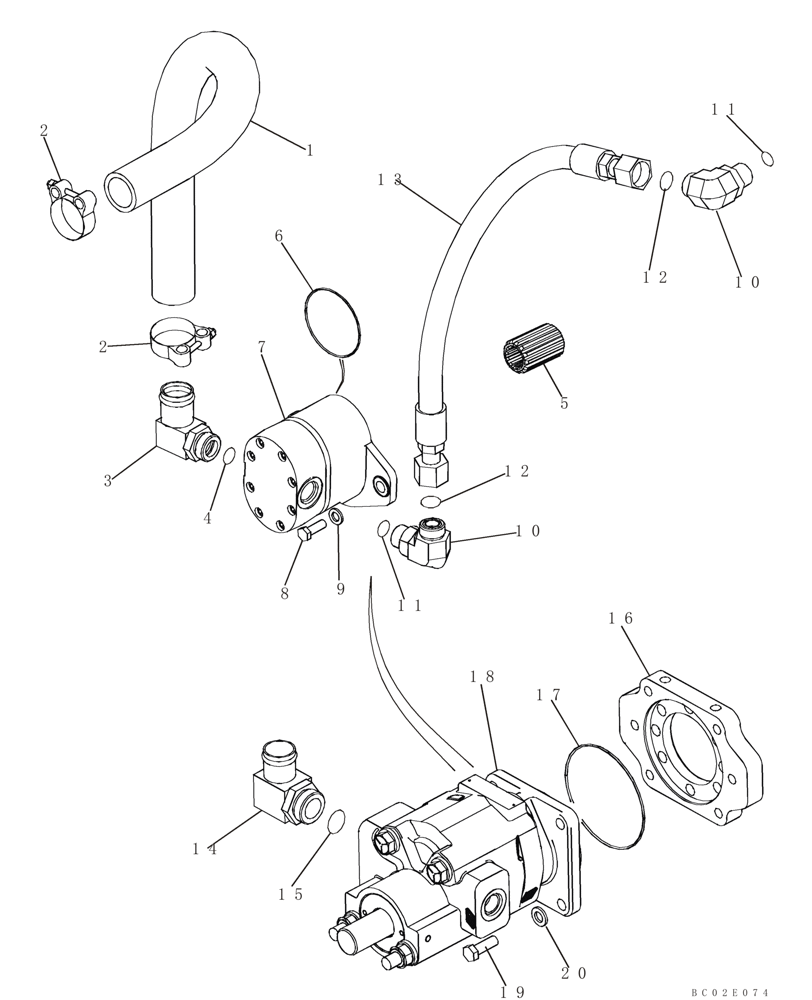

Запчасти Case 650K (08-02) - HYDRAULICS, EQUIPMENT - RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS

1

87351690

HOSE,38.10 mm ID x 849.00 mm, SAE 100R4

849 mm (33-7/16 in) Length Hose; At Tank, Replaces 429371A1 (900 mm (35-7/16 in)

1шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

Incl. Hardware

2шт.

3

217-222

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-5/16" - 12 Male ORB

Incl. Ref 4; Models Without PTO; For Models With PTO, See Ref 14 - 20

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

434451A1

SPLINE

1шт.

6

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Models without PTO; if used

1шт.

7

396801A2

PUMP, HYDRAULIC,41 CC

New; Component Parts Not Serviced Separately; Models Without PTO; For Models With PTO, See Ref 14 - 20; For Service Of Seals, Order 361942A1 Kit

1шт.

396801A2R

REMAN-HYD PUMP

650K SERIES 3 TIER 2 (12/06-)

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

361942A1

SEAL KIT

Repair; Includes (2) Wearplates, (3) Seals, (2) Rings

1шт.

8

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl. Ref 11, 12

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

13

429374A2

HOSE ASSY.

540 mm (21-5/16 inch); Pump To Valve Inlet

1шт.

87313817

CONDUIT

Sleve Attached To Ref 13 At Va;ve End; Not Illustrated

1шт.

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Used To Attach Sleeve; Not Illustrated

2шт.

REF

INSTRUCTION

MODELS WITH PTO

1шт.

14

217-365

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

Incl. Ref 15

1шт.

15

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

16

414180A1

HYD PUMP REPAIR KIT

Adapter Kit; Incl. (8) M8 x 16 87452750 Screws; (8) 87441426 Screw Seals; (1) 238-5159 3/32 x 5 in O-Ring; (1) 238-5152 3/32 x 3-1/4 in O-Ring; Adapter Plate is NSS; Used with 401630A2 Pump

1шт.

17

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

18

426958A2

HYDRAULIC PUMP,9.01 CC

See Figure 08-02A

1шт.

426958A2R

REMAN-HYD PUMP

650K SERIES 3 CRAWLER TIER 2 (12/06-)

1шт.

426958A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

19

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
