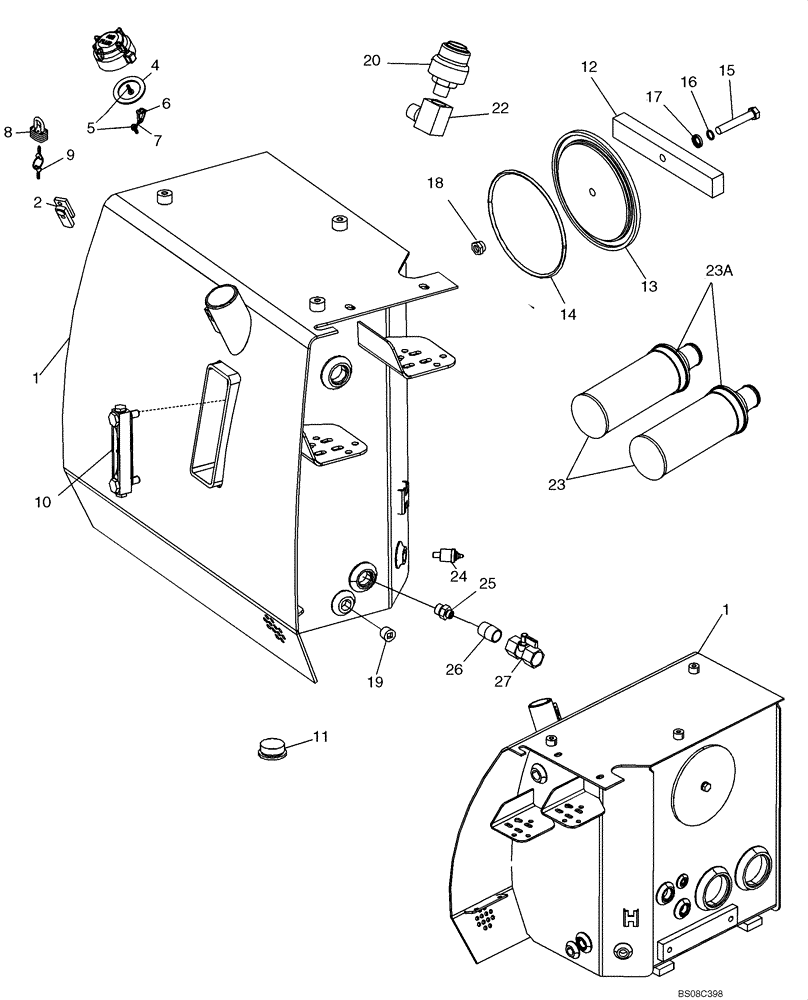

Запчасти Case 650K (08-01A) - RESERVOIR, HYDRAULIC - COVERS (IF USED) (08) - HYDRAULICS

REF

INSTRUCTION

DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANK AND THE NOTCH BY THE DOOR, THESE HAVE THEM FOR OTHER OPTIONS SEE FIGURE 08-01

1шт.

1

87644048

TANK, HYDRAULIC OIL

TANK, HYDRAULIC; Complete, Incl. Ref 2 - 19

1шт.

2

R46704

BRACKET

Tab; Fill Tube; Weld-On

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

87557921

GASKET,43mm ID x 61mm OD x 3mm Thk

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

Hook

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

8

D93753

PADLOCK

Incl. 9

1шт.

9

R29555

KEY

For Master Padlock Only

2шт.

9

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

10

226456A1

LEVEL GAUGE

Sight; Component Parts Not Serviced Separately; Apply 354-199, Serial Range: Sealant-Threads

1шт.

11

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

1шт.

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Used With Gauge

4шт.

12

L50741

BAR

Holddown

1шт.

13

L128352

COVER

Access

1шт.

14

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1шт.

15

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

17

L78045

WASHER

1шт.

18

131-510

LOCK NUT,1/2"-13

1шт.

19

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

Use With Loctite 592 (345-87)

1шт.

20

R42714

BREATHER

Use With Loctite 592 (345-87)

1шт.

22

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

Use With Loctite 592 (345-87)

1шт.

23

426784A1

FILTER STRAINER

Strainer, Suction; Incl. Ref 23A

2шт.

23a

84153256

O-RING,3mm Thk x 83mm ID, 70 Duro

O-RING, Replaces 510137, .139 x 3.234 236 5 Used On Some Models

1шт.

24

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil; Use With Loctite No. 592

1шт.

25

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

1шт.

REF

INSTRUCTION

FOLLOWING COMPONENTS FOR USE WITH DRAIN ECOLOGY OPTION

1шт.

26

221-1185

FITTING

.5 x 1.125

1шт.

27

86984713

SHUT-OFF VALVE

1шт.

284452A2

FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7

Cooler to Tank; Not Illustrated

1шт.
