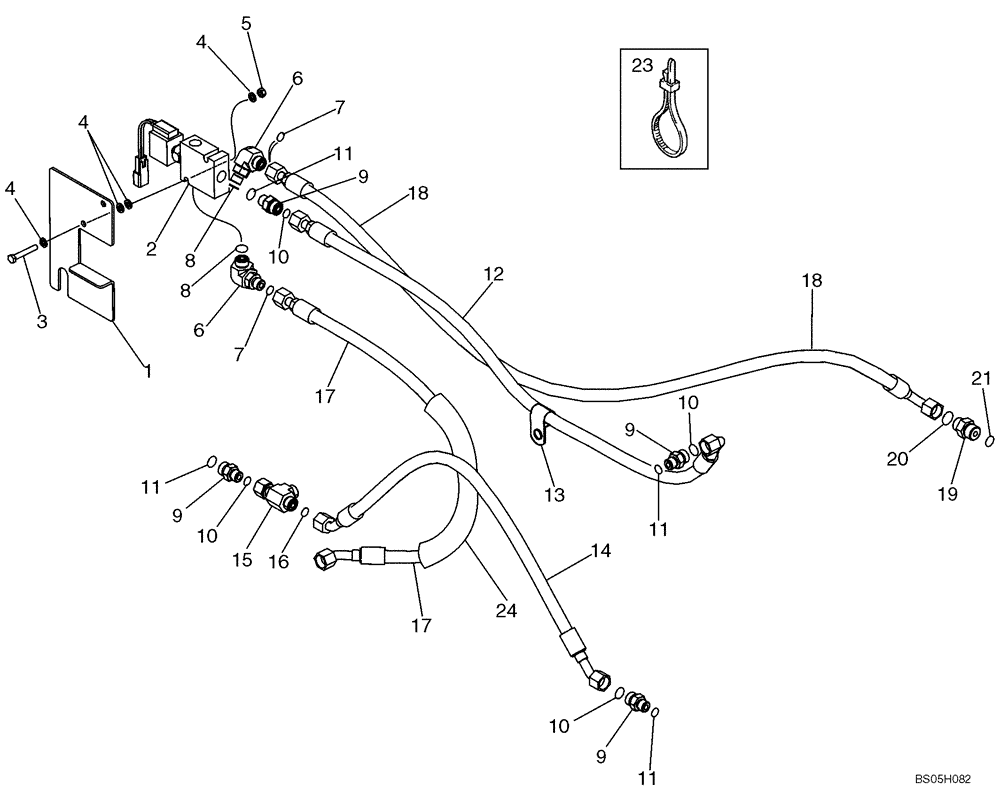

Запчасти Case 650K (07-02) - BRAKE LINES (07) - BRAKES

1

435406A2

BRACKET

Solenoid Mount

1шт.

2

430623A1

SOLENOID VALVE

Brake; Solenoid; Plugs Into Rear Wire Harness; See Figure 04-11; Component Parts Not Serviced Separately

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl. Ref 7, 8

2шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

9

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Ref 10, 11

4шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

12

436728A2

HOSE ASSY.

900 mm (35-7/16 in); Return; To Drain In Tank

1шт.

13

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

14

436729A1

HOSE ASSY.

585 mm (23-1/32 in)

1шт.

15

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl. Ref 16

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.

17

436730A1

HOSE ASSY.

715 mm (28-5/32 in); Valve To Motor

1шт.

18

436727A1

HOSE ASSY.

1490 mm (58-11/16 in); Supply; To Front Pump Charge Pressure Lower Port

1шт.

19

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. Ref 20, 21

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

24

87347629

CONDUIT

300 mm

1шт.

3

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.
