Артикул
Название
Примечание
Количество

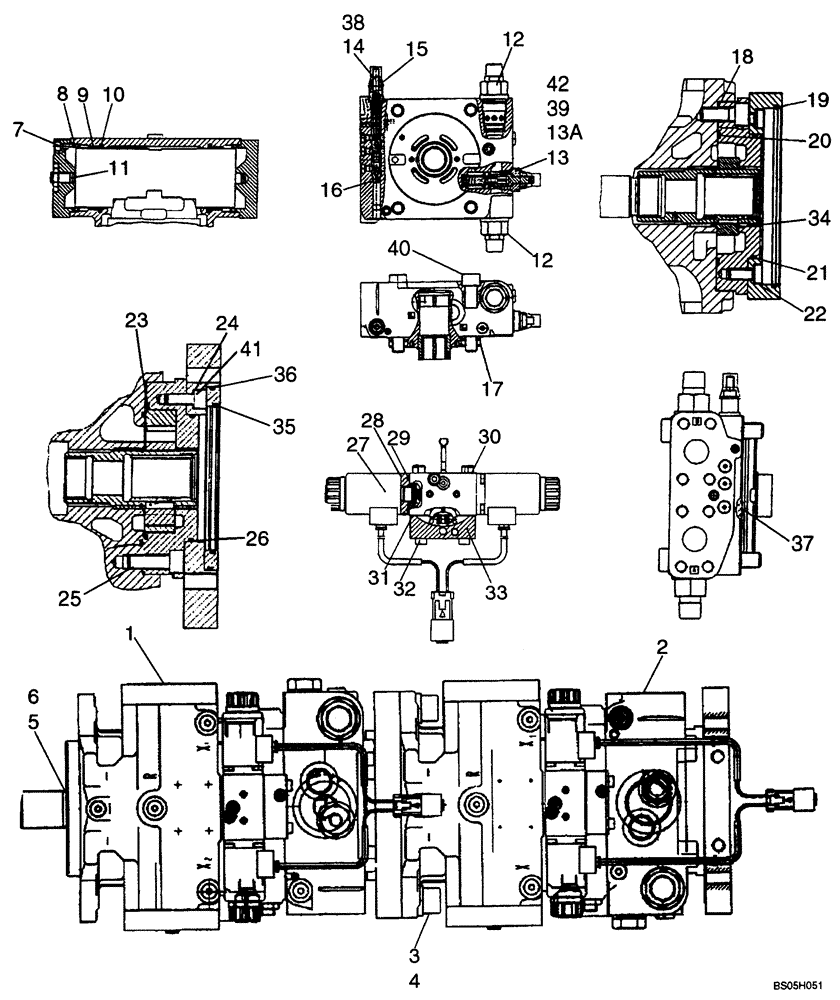

401630A2
HYDROSTATIC PUMP
Combination, Incl. 1 - 41
1шт.
84417898R
REMAN-HYDROSTAT PUMP
650K SERIES 3 CRAWLER TIER 2, Combination (12/06-), Reman for New PN 401630A2
1шт.
84417898C
CORE-HYDROSTAT PUMP
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
Pump, Shaft End
1шт.
2
NSS
NOT SOLD SEPARAT
Pump, Rear
1шт.
3
864-16035
HEX SOC SCREW,M16 x 35mm, Cl 8.8
2шт.
4
87441429
WASHER
2шт.
5
87441419
SEAL
Shaft, Front and Rear Pumps
2шт.
6
87441406
RING
Front and Rear Pumps
4шт.
7
863-6020
HEX SOC SCREW,M6 x 20mm, Cl 12.9
Front and Rear Pumps
16шт.
8
238-5148
O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro
4шт.
9
87441417
RING
Guide; Front and Rear Pumps
4шт.
10
87441416
RING
Special; Front and Rear Pumps
4шт.
11
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Positioning Piston Rod; Front and Rear Pumps
2шт.
12
87441421
VALVE, PRESSURE RELI
EF Relief; To Service External Seals, Order 87441415 Seal Kit; Front and Rear Pumps
4шт.
87441415
SEAL KIT
Seal Kit, Charge Relief Seal, Not Illustrated
1шт.
13
87441430
VALVE PRESSURE RELIE
Pressure Relief; Component Parts Not Serviced Separately; Includes (1) 87441428 Seal Lock Nut; Front Shaft End Pump
1шт.
13a
87441405
VALVE PRESSURE RELIE
Pressure Relief; Component Parts Not Serviced Separately; Includes (1) 87441404 Locking Screw; Rear Pump
1шт.
14
87441431
VALVE PRESSURE RELIE
Pressure Overide; Incl. Ref 15, 16; Front and Rear Pumps
1шт.
15
87441427
LOCK NUT
Seal Lock Nut
1шт.
16
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1шт.
17
238-5157
O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro
Front and Rear Pumps
1шт.
18
864-10025
HEX SOC SCREW,M10 x 25mm, Cl 8.8
Front Pump Support Plate
4шт.
19
238-5159
O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro
Front Pump Support Plate
1шт.
20
238-5153
O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro
Charge Pump Wear Plate
1шт.
21
238-5152
O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro
1шт.
22
87441426
RING
Seal; Front Pump Support Plate
8шт.
23
238-5153
O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro
Rear Pump Wear Plate
1шт.
24
87441426
RING
Seal; Rear Pump Support Plate
8шт.
25
864-10030
HEX SOC SCREW,M10 x 30mm, Cl 8.8
Rear Pump Support Plate
8шт.
26
238-5152
O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro
1шт.
87316133
MODULE
Control; Tandem Pump; Incl. 28 - 33
2шт.
27
87441418
SOLENOID VALVE
Proportional Solenoid, Control Module; Front and Rear Pumps
2шт.
28
87441402
BASE
Solenoid Mounting; Front and Rear Pumps
2шт.
29
238-6121
O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro
2шт.
30
87444198
GASKET
Solenoid Base; Front and Rear Pumps
1шт.
31
87441403
GASKET
Cover; Front and Rear Pumps
1шт.
32
87441423
BOLT,Skt Hd, M6 x 65mm, Gr 8.8
Socket Head; Front and Rear Pumps
4шт.
33
87441401
VALVE COVER
Solenoid Control Module; Front and Rear Pumps
1шт.
34
238-5031
O-RING,0.07" Thk x 1.739" ID, -31, Cl 5, 75 Duro
2шт.
35
238-5155
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
1шт.
36
238-5158
O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro
1шт.
37
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
39
238-6119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
1шт.
40
863-16090
HEX SOC SCREW,M16 x 90mm, Cl 12.9
4шт.
41
864-8016
HEX SOC SCREW,M8 x 16mm, Cl 8.8
8шт.
238-6123
O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro
1шт.
Выбрано товаров: 48
