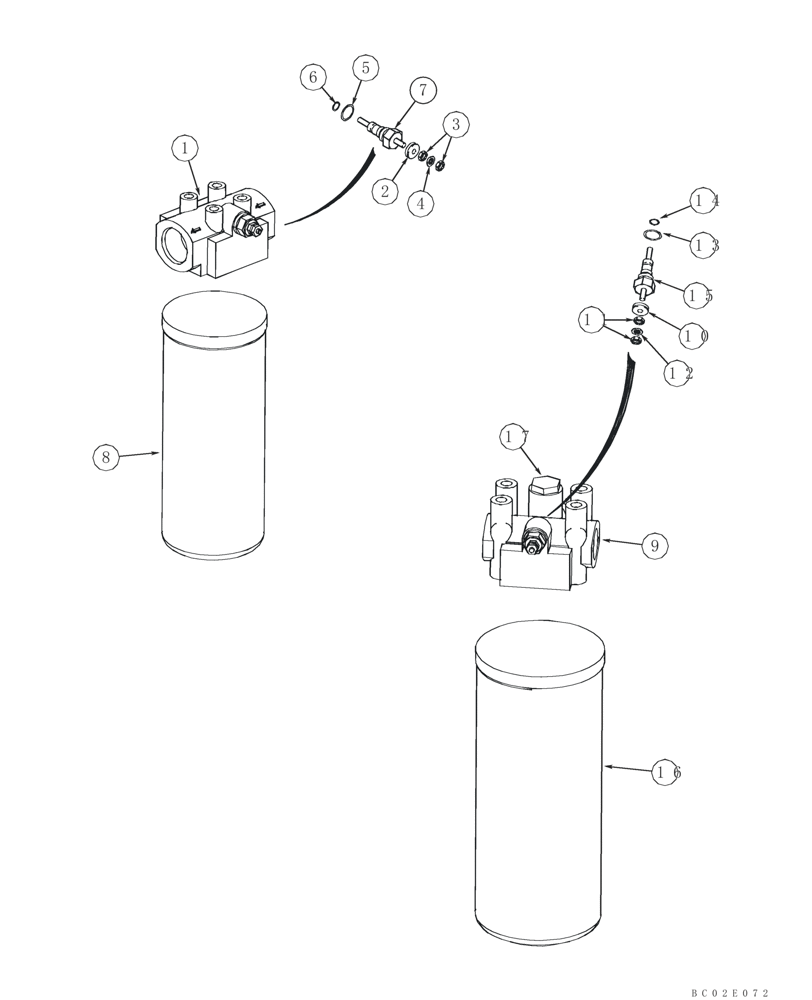

Запчасти Case 650K (06-09) - FILTER ASSY (06) - POWER TRAIN

426336A1

FILTER ASSY

3-3/4 OD x 11-15/16 in lg; Incl. Ref 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

Filter Head

1шт.

N13268

PRESSURE SWITCH

Incl. Ref 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Washer, Special; Red, White

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Indicator

1шт.

8

402652A1

HYDRAULIC OIL FILTER

3-3/4 OD x 9-7/16 in lg; Element

1шт.

418237A1

FILTER ASSY

4-5/8 OD x 14-11/16 in lg; Incl. Ref 9 - 17

1шт.

9

NSS

NOT SOLD SEPARAT

Head Filter

1шт.

N13268

PRESSURE SWITCH

Incl. Ref 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

Washer, Special; Red, White

1шт.

11

129-667

NUT,#10-32, LH

2шт.

12

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Indicator

1шт.

16

254353A1

HYDRAULIC OIL FILTER

4-5/8 OD x 11-5/8 in lg

1шт.

17

NSS

NOT SOLD SEPARAT

Bypass Valve

1шт.
