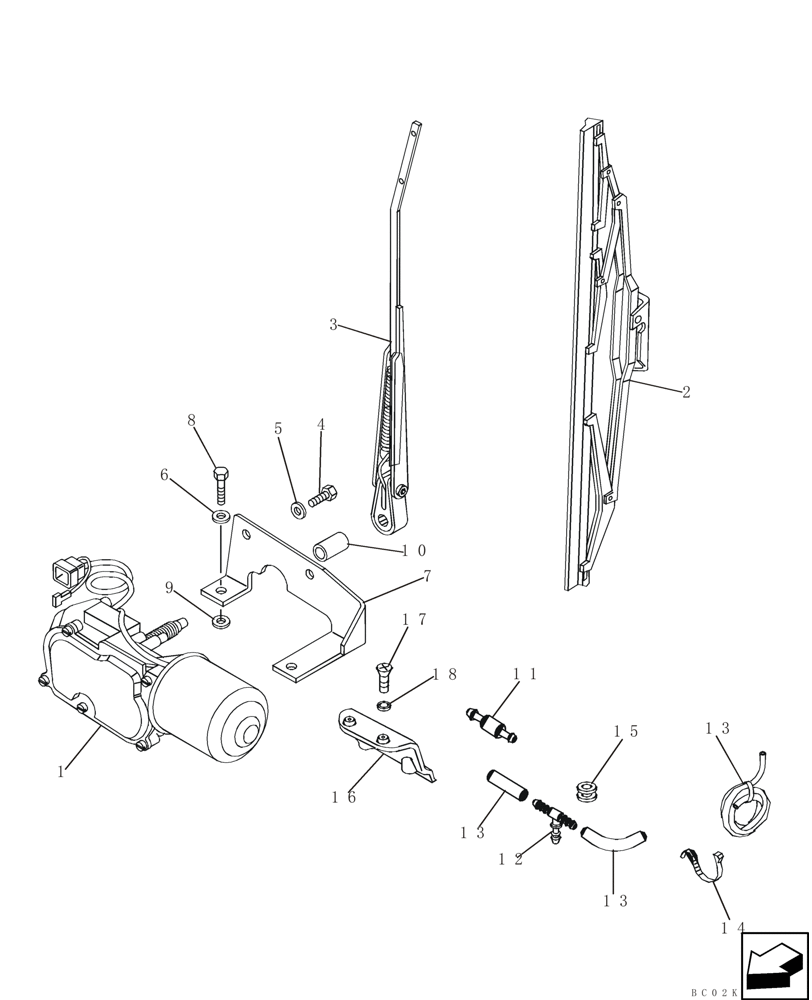

Запчасти Case 650K (04-26) - WIPER, REAR - CAB (04) - ELECTRICAL SYSTEMS

1

87400648

WIPER MOTOR

12V Wiper Motor; For Cab Door Wipers, See Figure 09-26

1шт.

2

76045506

WIPER BLADE

1шт.

3

76067637

WIPER ARM

425 mm lg.

1шт.

4

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

76067232

BRACKET

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

9

14496534

WASHER,M8

x 17

2шт.

10

76067233

SPACER

Used With 87345051 Washer Seal

1шт.

87345051

SEALING WASHER

Washer Seal

1шт.

11

79020844

CHECK VALVE

Wiper/Washer

1шт.

12

79021522

TEE,M4.5 Barb

1шт.

13

19054786

FLEXIBLE HOSE

L=4M; Rear Window Washer

1шт.

14

76067664

CABLE TIE

CABLE STRAP 2.2 x 72 mm, Clamp

4шт.

15

76045509

GROMMET

Grommet

4шт.

16

76067966

COVER

Rear Wiper

1шт.

17

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

2шт.

18

79076208

WASHER

Nylon, Black

2шт.
