Запчасти Case 650K (04-25) - WIPER, FRONT - CAB (04) - ELECTRICAL SYSTEMS

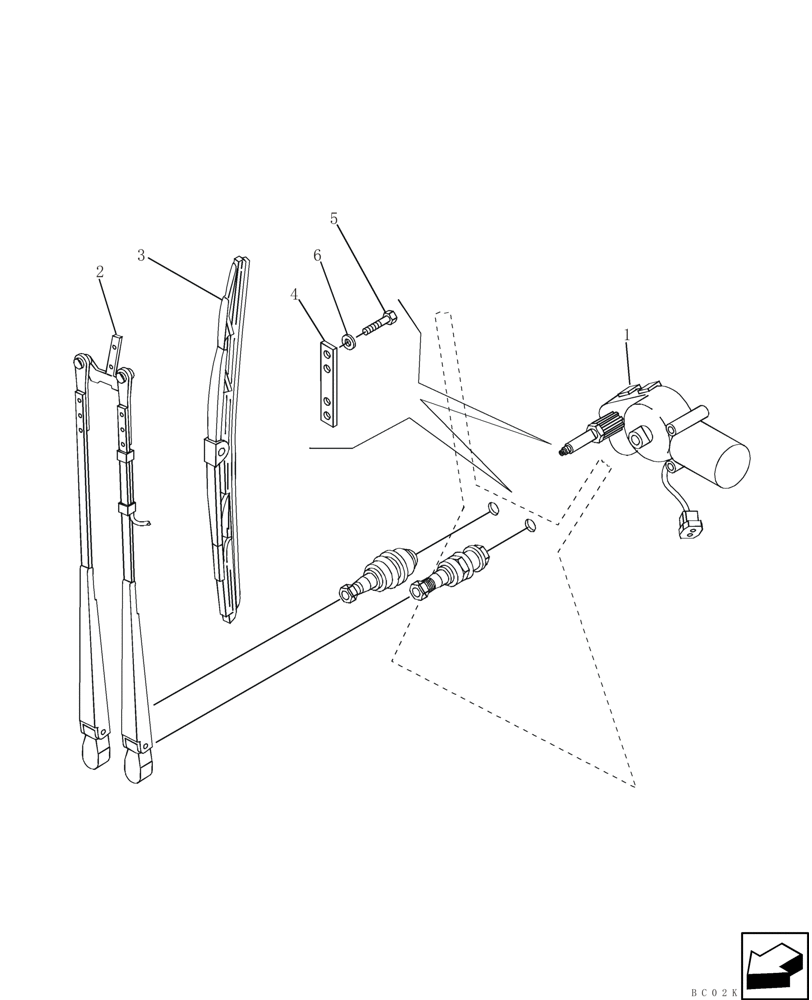

Схема запчастей Case 650K - (04-25) - WIPER, FRONT - CAB (04) - ELECTRICAL SYSTEMS
2
5
bc02k239
3
4
1
6

Артикул

Название

Примечание

Количество

1

87626045

WIPER MOTOR,12V

MOTOR, WIPER 12V Wiper Motor; Component parts not serviced separately; Replaces 87400567; For Cab Door Wipers, See Figure 09-26

1шт.

2

76067238

WIPER ARM

430 mm lg.

1шт.

3

76067230

WIPER BLADE

Incl. Bracket, Which is Not Serviced Separately, for Mounting, Serial Range: Blade-Arm

1шт.

4

76067231

BRACKET

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

6

14496534

WASHER,M8

2шт.

Выбрано товаров: 6
