Запчасти Case 650K (04-19) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

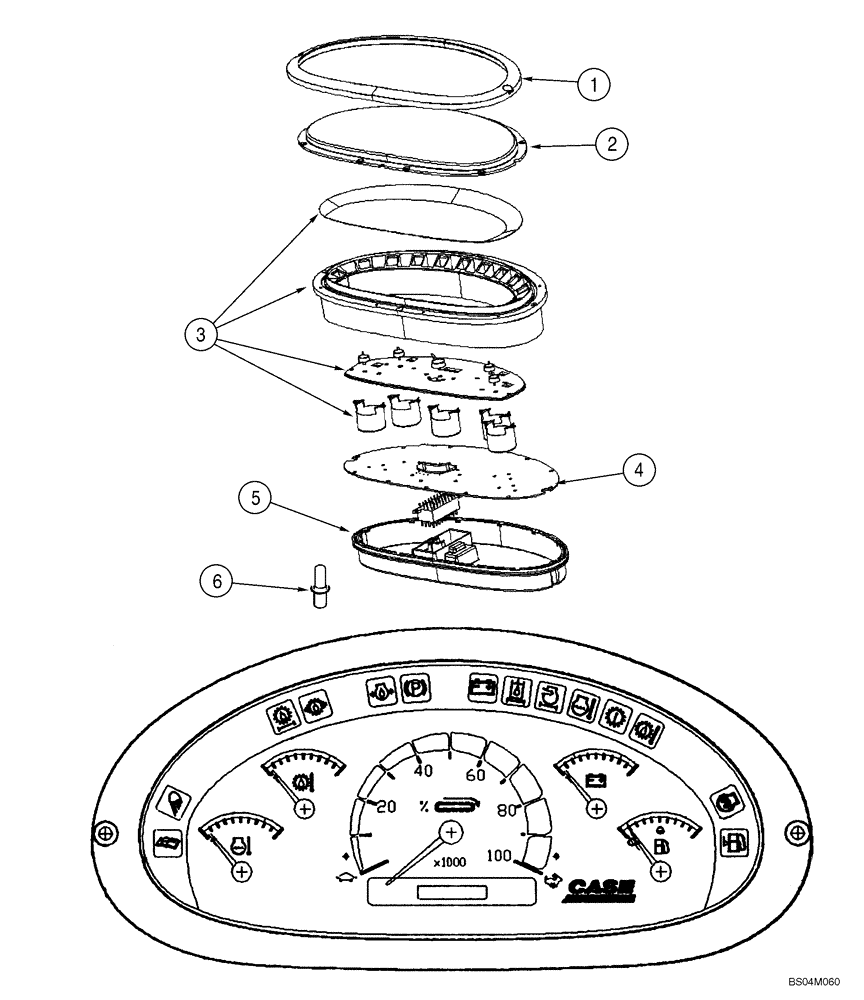

Схема запчастей Case 650K - (04-19) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS
6
4
2
3
1
5

Артикул

Название

Примечание

Количество

87454942

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Instrument Cluster; Incl. Ref 1 - 6

1шт.

87454942R

REMAN-INSTR CLUSTER

1шт.

87454942C

CORE-CLUSTER, INSTR

Return Number

1шт.

1

370755A1

BEZEL

Black Trim

1шт.

NSS

NOT SOLD SEPARAT

Screw, No. 6 x 1/4; Trim

2шт.

2

370756A1

LENS

Clear; Includes O-Ring, Which Is Not Serviced Separately

1шт.

3

NSS

NOT SOLD SEPARAT

Housing; Includes Overlay, Seal and Gauges, Which Are Not Serviced Separately

1шт.

4

NSS

NOT SOLD SEPARAT

Circuit Board; Includes Seal, Which Is Not Serviced Separately

1шт.

NSS

NOT SOLD SEPARAT

Screw, No. 6 x 3/8

25шт.

5

370760A1

REAR COVER

Includes O-Ring, Which Is Not Serviced Separately

1шт.

NSS

NOT SOLD SEPARAT

Screw, No. 6 x 3/4; Rear Cover

2шт.

6

388053A2

BULB,14V, 1W

1W x 14V; Includes Socket

1шт.

Выбрано товаров: 12
