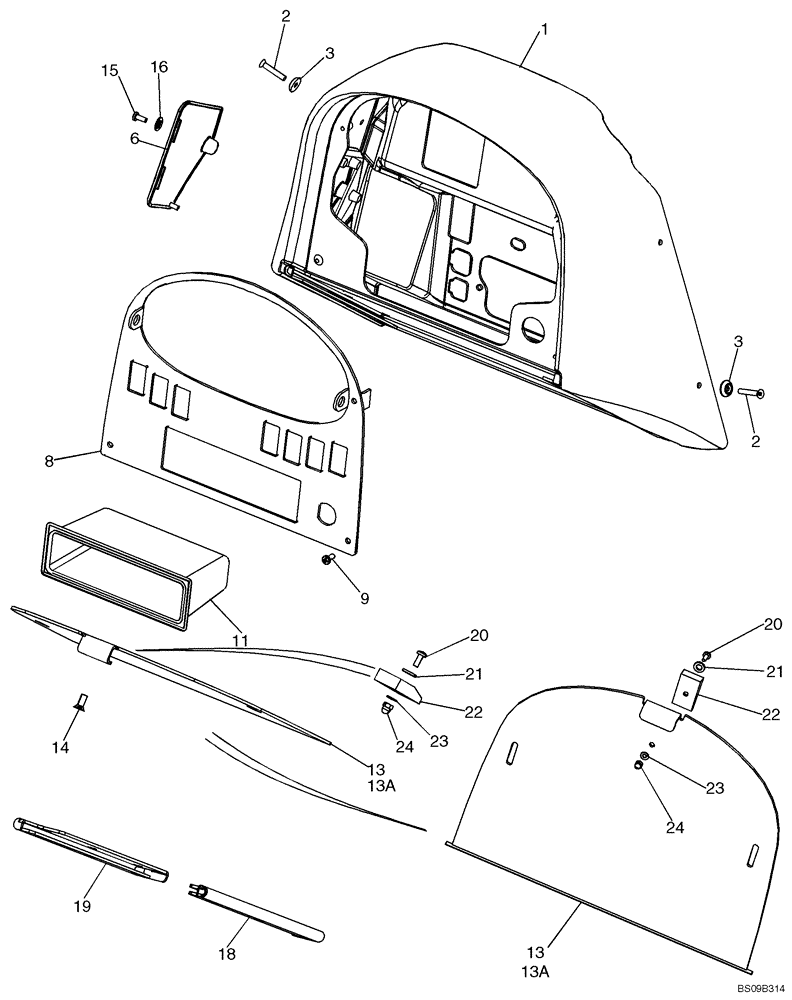

Запчасти Case 650K (04-17) - CONSOLE, FRONT - CANOPY, ROPS (04) - ELECTRICAL SYSTEMS

1

87565979

CONSOLE

Front Console; Canopy Models

1шт.

2

14441724

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

Hex Socket Flange

4шт.

3

79076208

WASHER

Nylon

4шт.

6

86984895

PROTECTIVE COVER

Outer

1шт.

8

87416349

FRONT PLATE

Face Plate, Front Console

1шт.

9

540-712

SCREW,Cross Pan Hd, M5 x 12

4шт.

11

4417913

CONTAINER

Storage Container

1шт.

13

87423753

DOOR

Lockup; That Covers Up The Console Instruments

1шт.

13a

87426769

BUSHING

For Door Lockup

2шт.

14

843-1512

SCREW,Flat , M5 x 12mm, Cl 4.8

6шт.

15

540-712

SCREW,Cross Pan Hd, M5 x 12

1шт.

16

87428441

RETAINER

Push On, M5

1шт.

18

87423749

GUIDE

Lock Up Door; Right Hand; Use 345-199 Adhesive Thread Loctite 243

1шт.

19

87423748

GUIDE

Lock Up Door; Left Hand; Use 345-199 Adhesive Thread Loctite 243

1шт.

20

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

1шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

87423750

BUMPER

Rubber

1шт.

23

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

24

87423751

CROWN NUT

M4

1шт.

25

76047274

NUT,M6 x 1

If Used; Not Illustrated

4шт.
