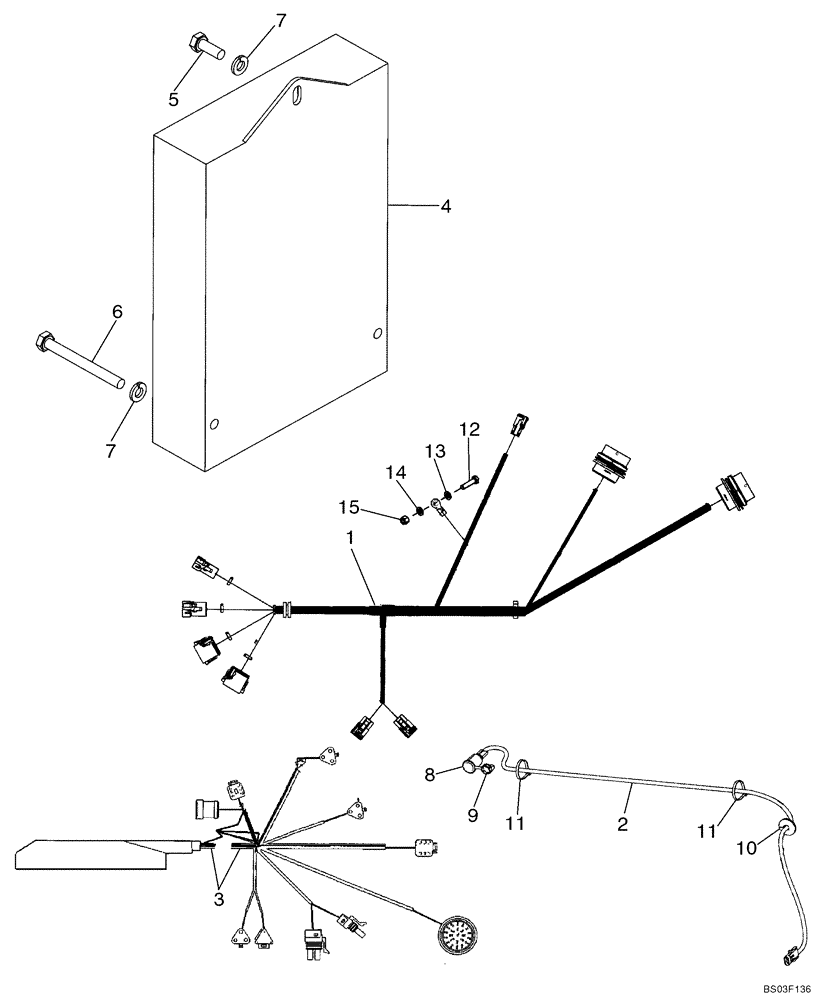

Запчасти Case 650K (04-15) - HARNESS, CANOPY - HARNESS, MICROCONTROLLER (04) - ELECTRICAL SYSTEMS

87411764

WIRE HARNESS

Main ROPS Canopy Harness; Incl. Ref 1, 87410144 Harness; (2) 79113969 Proximity Sensors; (2) 79113970 Cables; See Figure 07-03 For Sensors and Cables

1шт.

1

87410144

WIRE HARNESS

Main ROPS Canopy Harness

1шт.

2

87408569

WIRE HARNESS

Power Plug Harness

1шт.

3

426946A1

WIRE HARNESS

Intermediate Microcontroller Harness; Attaches to Main Microcontroller Harness (419302A1)

1шт.

4

87329249

CONTROL UNIT

Microprocessor Control Box; Component Parts Not Serviced Separately: Replaces 373142A1; See Figure 09-20 For Cover

1шт.

87329249R

REMAN ELECT CONTROL

650K TIER 2 (1/05-)

1шт.

87329249C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

6

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

7

892-11006

LOCK WASHER,M6

3шт.

8

283779A1

POWER SOCKET,12V

1шт.

9

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

1шт.

10

248-2344

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie

1шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Ground Mounting Inside LH Console

1шт.

13

893-11006

LOCK WASHER,Ext Tooth, M6

Ground Mounting Inside LH Console

1шт.

14

892-11006

LOCK WASHER,M6

Ground Mounting Inside LH Console

1шт.

15

829-1406

NUT,Hex, M6 x 1, Cl 10.9

Ground Mounting Inside LH Console

1шт.
