(04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR)

Запчасти Case 650K (04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (04) - ELECTRICAL SYSTEMS

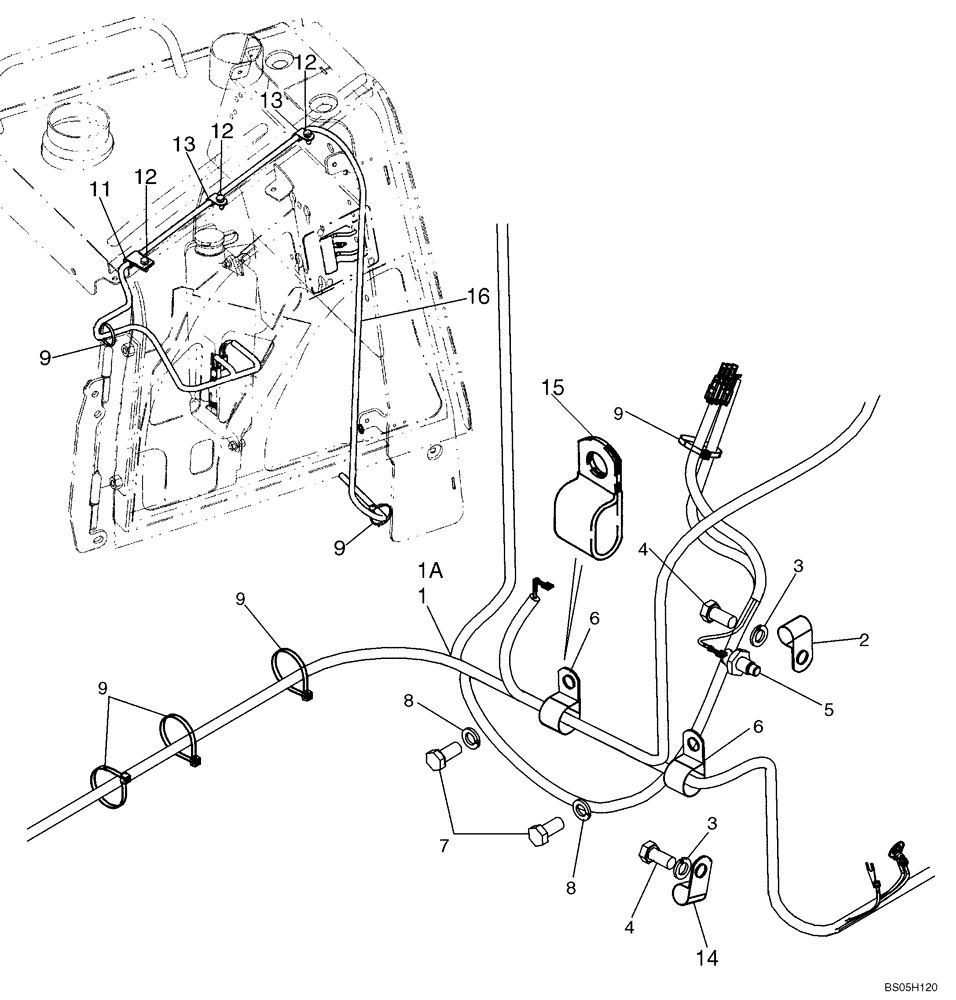

Схема запчастей Case 650K - (04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (04) - ELECTRICAL SYSTEMS
2
14
15
9
9
9
4
4
12
11
12
8
1
12
6
9
3
3
7
8
9
5
16
6
13
1a
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87438048

WIRE HARNESS

Main, No Longer Available, For Service Order 87319008 Main Harness and 87318846 Windshield and Door Washer Harness (Models With Cab) (Ref 16)

1шт.

1a

87319008

WIRE HARNESS

Main, Replaces 87438048

1шт.

2

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

3

892-11008

LOCK WASHER,8mm ID

2шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

5

277016A1

PRESSURE SWITCH

Engine Oil, Incl. 637-62081 O-ring

1шт.

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

6

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

If Used

2шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

8

892-11012

LOCK WASHER,M12

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

10

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

11

49771

CLAMP

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

13

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

If Used

2шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

If Used

1шт.

15

242999A1

CLAMP

Double; If Used

2шт.

16

87318846

WIRE HARNESS

Windshield and Door Washer Pumps, Used With 87319008 Main Harness (Ref 1A)

1шт.
