Запчасти Case 650K (03-09) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

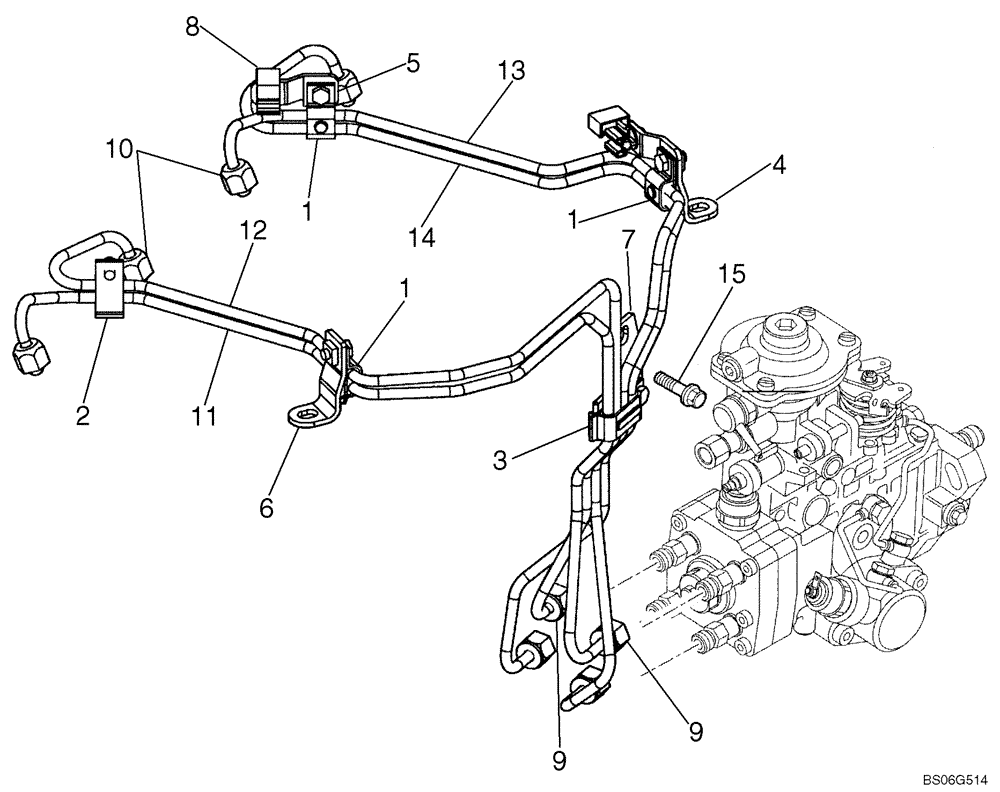

Схема запчастей Case 650K - (03-09) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM
12
2
8
13
9
1
11
1
9
1
14
4
10
7
15
3
5
6

Артикул

Название

Примечание

Количество

2852075

PIPE SET

Fuel Injection Supply Pipe Assy; Incl. Ref 1-14

1шт.

1

2852871

BRACKET

Fuel Injection Pipe Bracket

3шт.

2

2852872

BRACKET

Fuel Injection Pipe Bracket

1шт.

3

2852873

BRACKET

Fuel Injection Pipe Bracket

1шт.

4

2852874

BRACKET

Fuel Injection Pipe Bracket

1шт.

5

2852875

BRACKET

Fuel Injection Pipe Bracket

1шт.

6

2852876

BRACKET

Fuel Injection Pipe Bracket

1шт.

7

2852877

BRACKET

Fuel Injection Pipe Bracket

1шт.

8

2852878

CLAMP BRACKET

Fuel Injection Pipe Bracket (Not Serviced Separately)

2шт.

9

2852879

NUT

Hex

4шт.

10

2852880

NUT

Hex

4шт.

11

2852881

INJECTION PIPE

Fuel Injector Supply Pipe

1шт.

12

2852882

INJECTION PIPE

Fuel Injector Supply Pipe

1шт.

13

2852883

INJECTION PIPE

Fuel Injector Supply Pipe

1шт.

14

2852884

INJECTION PIPE

Fuel Injector Supply Pipe

1шт.

15

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

Replaces 4899068

1шт.

Выбрано товаров: 16
