Запчасти Case 650K (09-42) - CAB - AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS

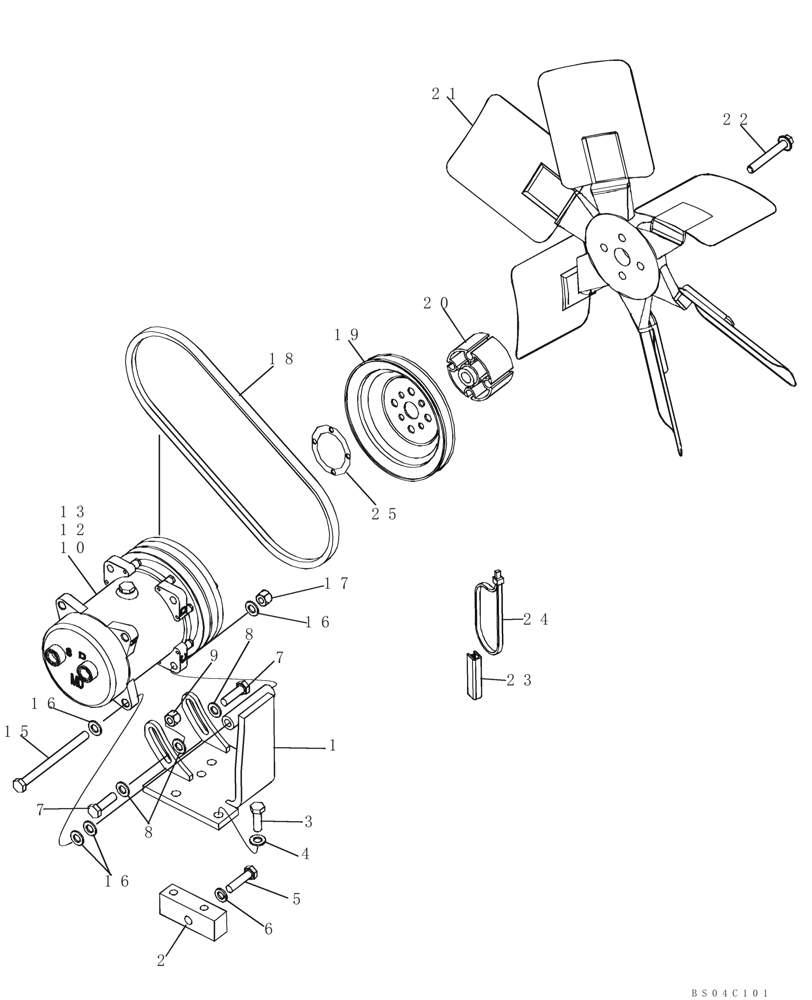

Схема запчастей Case 650K - (09-42) - CAB - AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS
13
19
bs04c101
7
25
12
9
16
1
15
7
16
3
23
24
17
4
8
6
16
22
20
21
8
2
18
10
5

Артикул

Название

Примечание

Количество

1

87448032

SUPPORT

1шт.

2

87453233

SUPPORT

1шт.

4

892-11010

LOCK WASHER,M10

5шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

1999755C3

COMPRESSOR

Incl. Ref 11 - 13

1шт.

10

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley,For Use w/HFC134A Refrigerant

1шт.

10

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

10

86993462R

REMAN-COMPRESSOR

650K SERIES 2 CRAWLER (TIER 2) (1/05-); Reman For New P/N 1999755C3

1шт.

10

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

10

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

10

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

11

135324A2

CLUTCH

Not Illustrated

1шт.

12

A49667

PLUG

Hex

1шт.

13

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

15

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

18

87451034

V-BELT,12.70 mm W x 1012.80 mm L

1шт.

19

2853235

PULLEY

Compressor, Part of Engine Assembly

1шт.

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

Replaces 2852234, 87803136

4шт.

16587125

SCREW,M10

M10 x 30; Replaces 2852355

4шт.

20

87438720

SPACER

1шт.

21

A173557

FAN

1шт.

22

193426A1

BOLT

Flange, M10 x 70

4шт.

23

252765A1

ORNAMENTAL STRIP

Trim, Hose Protection On Engine

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

25

87442369

PULLEY

Spacer

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

Выбрано товаров: 32
