(09-39) - CAB - AIR CONDITIONING CONTROLS, COMPRESSOR AND DRYER LINES

Запчасти Case 650K (09-39) - CAB - AIR CONDITIONING CONTROLS, COMPRESSOR AND DRYER LINES (09) - CHASSIS/ATTACHMENTS

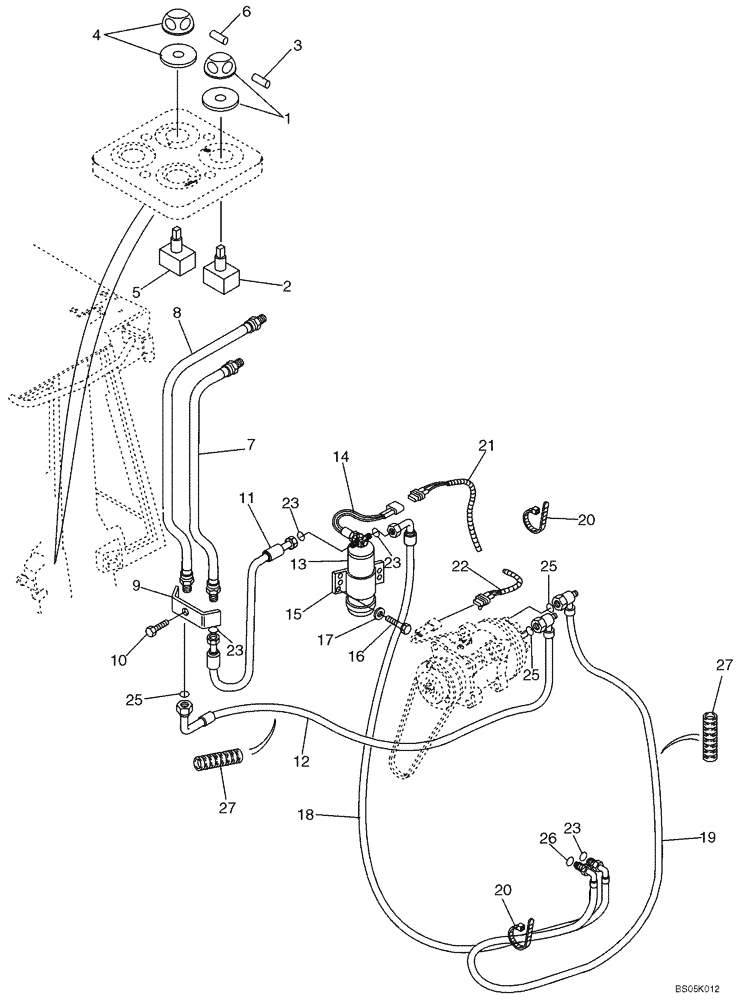

Схема запчастей Case 650K - (09-39) - CAB - AIR CONDITIONING CONTROLS, COMPRESSOR AND DRYER LINES (09) - CHASSIS/ATTACHMENTS
20
23
8
11
23
25
14
22
20
6
9
7
13
5
17
23
10
16
1
15
27
26
4
2
27
25
18
3
12
21
23
19
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76043653

KNOB

1шт.

2

76049694

SWITCH

Air Conditioning On/Off

1шт.

3

13795820

INSERT

M4 x 14 Dowel Pin

1шт.

4

76043653

KNOB

1шт.

5

87414786

FAN SWITCH

Fan Speed Switch; Integral Part Of 87410122 Cab Main Harness

1шт.

6

13795820

INSERT

M4 x 14 Dowel Pin

1шт.

7

76076702

TUBE

5/8

1шт.

8

76076701

TUBE

3/4

1шт.

9

76076703

BRACKET

1шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

11

76076721

FLEXIBLE HOSE

5/8

1шт.

12

87329123

HOSE

3716 mm (146-1/4), Incl. 25; Replaces 87405602 hose; 3740 mm (147-1/4)

1шт.

76035687

RECEIVER-DRYER

Dryer; Incl. Ref 13, 14

1шт.

13

76035689

FILTER

1шт.

14

76035690

SWITCH

Valve

1шт.

15

79092065

BRACKET

1шт.

16

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

12645034

WASHER

4шт.

18

87400727

HOSE

Includes (2) 128483A1 O-Rings

1шт.

19

87405603

HOSE

Incl. 25, 26, 128485A1 fem end O-Ring, 76049689 male end O-Ring; Also Includes 1250594C1 Valve Core, 122553A1 Sealing Cap

1шт.

20

4982514

CABLE TIE,188mm L

CABLE STRAP Clamp

10шт.

21

87410122

WIRE HARNESS

1шт.

22

418484A1

WIRE HARNESS

1шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

4шт.

25

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.

26

76049689

O-RING,17.17mm ID x 1.78mm Width

1шт.

27

87450713

CONDUIT

910 mm

2шт.
