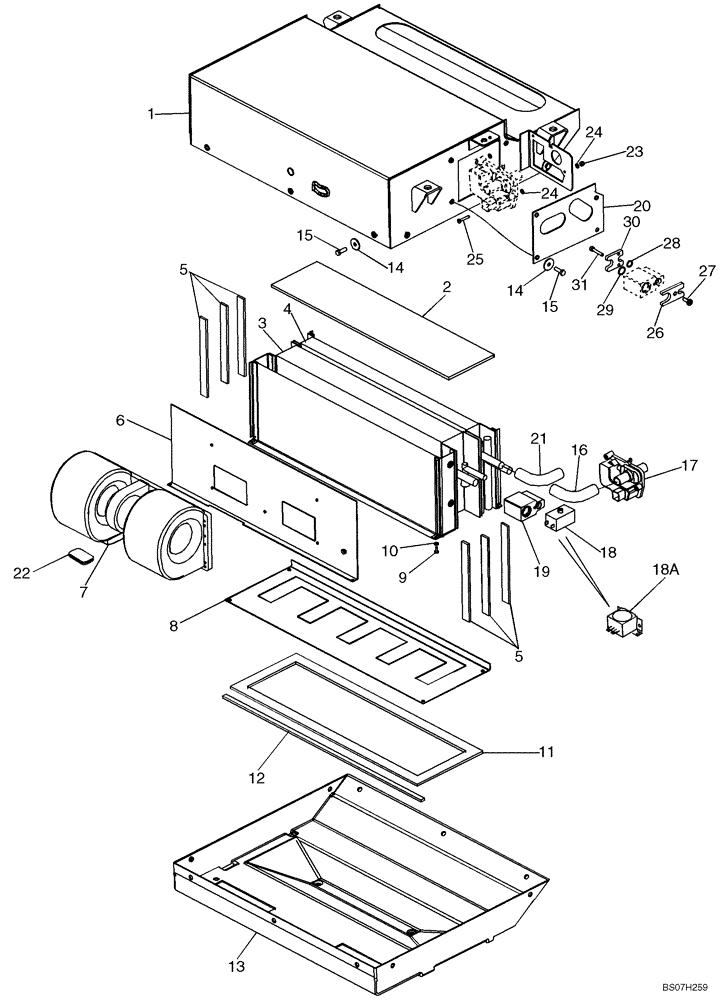

Запчасти Case 650K (09-37) - CAB - HEATER AND AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
87400678
HEATER ASSY.
Incl. 1 - 31
1шт.
1
87333902
HOUSING
Housing; Blower; Includes (10) 86982574 Threaded Inserts; Replaces 87400665 Housing Without Threaded Inserts
1шт.
86982574
THREADED INSERT
10шт.
2
87400666
SEAL
Foam Insulation
1шт.
3
87400670
RADIATOR
Core AC Evaporator
1шт.
4
87400671
CORE-COMPRESSOR
Core Heater
1шт.
5
87400672
SEAL
Foam Insulation
6шт.
6
87400667
SUPPORT
Blower
1шт.
7
87400736
BLOWER
12V, Includes Ref. 22 Resistor
1шт.
87400736R
REMAN-BLOWER
650K SERIES 2 CRAWLER (TIER 2) (1/05-)
1шт.
87400736C
CORE-BLOWER
Return Number
1шт.
8
87400669
SUPPORT
Core
1шт.
9
840-1410
SCREW,Pan, M4 x 10mm, Cl 4.8
6шт.
10
895-11004
WASHER,4.3mm ID x 9mm OD x 0.8mm Thk
6шт.
11
87400675
SEAL
Foam Insulation
1шт.
12
87400674
SEAL
Foam Insulation
1шт.
13
87333911
COVER
Blower; Includes (6) 86982574 Threaded Inserts; Replaces 87400668 Cover Without Threaded Inserts
1шт.
86982574
THREADED INSERT
6шт.
14
895-15006
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
14шт.
15
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
14шт.
16
87400677
HEATER HOSE,20.00 mm ID x 40.00 mm
Heater Connection
1шт.
17
87422746
VALVE
12V
1шт.
18
76049691
THERMOSTATIC SWITCH
AC, Ranco Brand; If Used
1шт.
18a
86505792
THERMOSTATIC SWITCH
AC, Eaton Brand; If Used
1шт.
19
71485277
HYDRAULIC VALVE
AC Expansion
1шт.
20
87400676
COVER PLATE
1шт.
21
76067789
HEATER HOSE,16.00 mm ID x 30.00 mm
1шт.
22
87439843
RESISTOR
1шт.
23
832-10404
NUT,M4 x 0.7, Cl 8.8
2шт.
24
895-11004
WASHER,4.3mm ID x 9mm OD x 0.8mm Thk
4шт.
25
840-1410
SCREW,Pan, M4 x 10mm, Cl 4.8
2шт.
26
71485280
FLANGE
1шт.
27
840-1616
SCREW,Pan, M6 x 16mm, Cl 4.8
1шт.
28
128484A1
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro
1шт.
30
71485281
FLANGE
1шт.
31
864-5030
HEX SOC SCREW,M5 x 30mm, Cl 8.8
2шт.
Выбрано товаров: 37
