(09-34) - CAB - WASHER, WINDSHIELD

Запчасти Case 650K (09-34) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

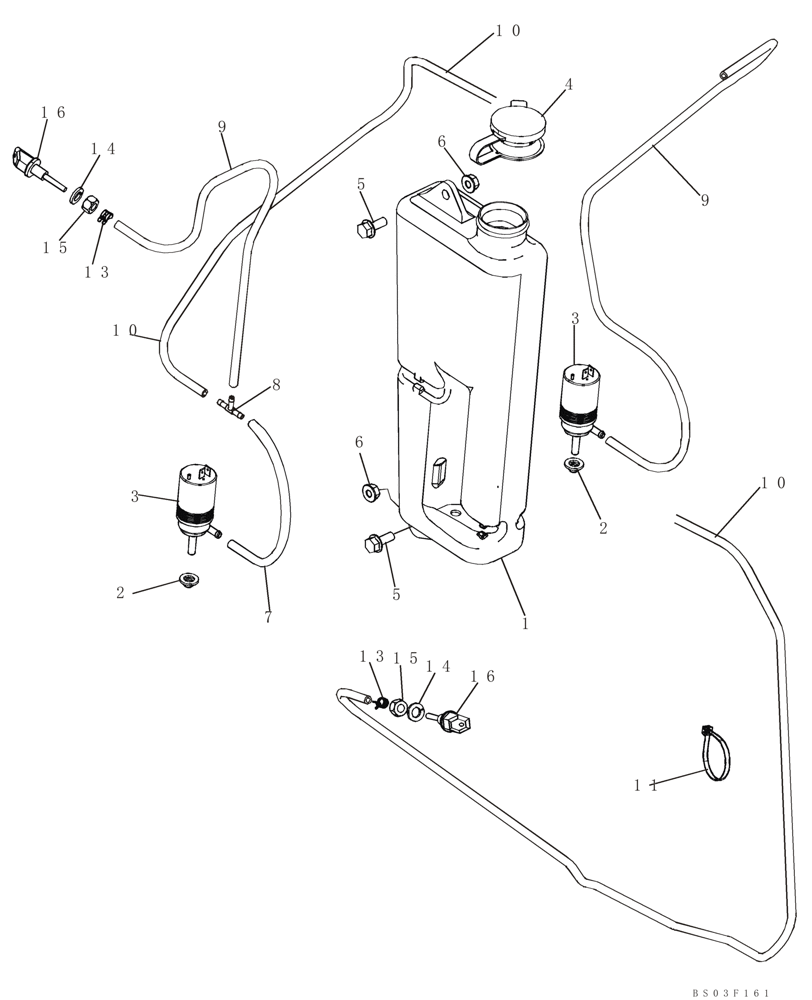

Схема запчастей Case 650K - (09-34) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS
3
13
9
11
9
bs03f161
6
7
16
13
15
14
2
1
10
5
15
2
5
10
3
8
6
14
4
16
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

389423A3

RESERVOIR, WINDSHIEL

Tank Assembly; Incl. Ref 1 - 4; Not Available As An Assembly, Order Components

1шт.

1

386721A4

RESERVOIR

Windshield Washer Tank

1шт.

2

196830A1

GROMMET

2шт.

3

E47238

PUMP,12V

Motor

2шт.

4

307130A1

COVER

1шт.

5

905-8020

BOLT,Hex Flg, M8 x 20mm

2шт.

6

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

7

87409799

HOSE

240 mm (9-1/2 in); Cut From 397154A1

1шт.

8

87427778

FITTING,3/16"

Tee; 3/16 in

1шт.

9

87427794

HOSE

Hose, 700 mm (27-1/2 in); Cut From 397154A1

2шт.

10

87427795

HOSE

3000 mm (118 in); Cut From 397154A1

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

397154A1

HOSE WASHER

Bulk, 100 ft

1шт.

13

305578A1

CLAMP,7.65mm - 8.76mm

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

284154A1

NOZZLE,3/8" - 16

Includes A Steel and Rubber Washer, Which Are Not Serviced Separately

2шт.
