(09-32) - CAB - COVERS, INTERIOR ROOF AND FLOOR

Запчасти Case 650K (09-32) - CAB - COVERS, INTERIOR ROOF AND FLOOR (09) - CHASSIS/ATTACHMENTS

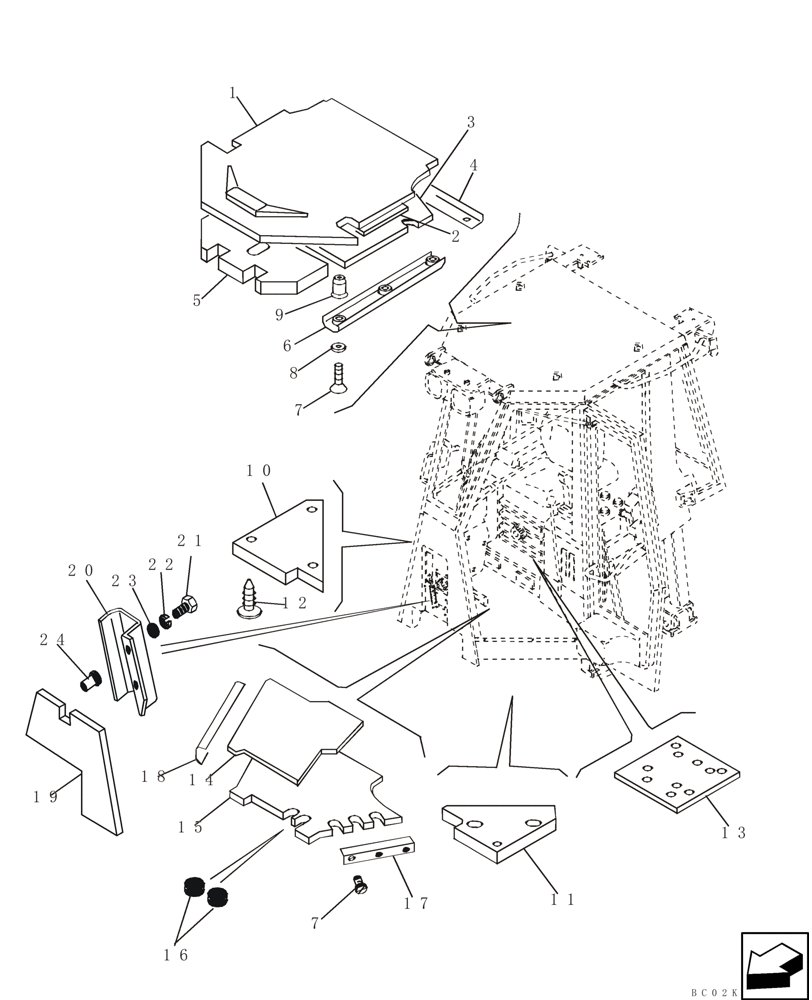

Схема запчастей Case 650K - (09-32) - CAB - COVERS, INTERIOR ROOF AND FLOOR (09) - CHASSIS/ATTACHMENTS
24
23
10
14
22
20
12
3
7
4
6
2
5
11
7
8
18
17
15
19
bc02k250
13
9
1
16
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76067954

CONSOLE

Upper Cover

1шт.

2

76067493

INSULATING PANEL

1шт.

3

76067494

INSULATING PANEL

1шт.

4

76067478

RETAINER

Rear

1шт.

5

87400690

PANEL

Front

1шт.

6

76067634

RETAINER

2шт.

7

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

26шт.

8

79076208

WASHER

Nylon, Black

20шт.

9

15629711

THREADED INSERT,Flat, M6 OD x 15mm L

M6 X 9.5

15шт.

10

76067534

INSULATING PANEL

Outer Right

1шт.

11

87400681

TRIM PANEL

Outer, Left-Hand

1шт.

12

76048381

BUTTON

4шт.

13

87400689

PANEL

Below Seat

1шт.

14

76067553

FLOOR MAT

1шт.

15

76067971

MAT

Mat

1шт.

16

76045509

GROMMET

Grommet

2шт.

17

76067049

RETAINER

LH

1шт.

18

76067050

RETAINER

RH

1шт.

19

76067506

INSULATING PANEL

Below Front Console

1шт.

20

87400718

GUARD

Below Front Console

1шт.

21

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

22

12035670

LOCK WASHER

M6

2шт.

23

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

24

71490914

THREADED INSERT,M6

2шт.
