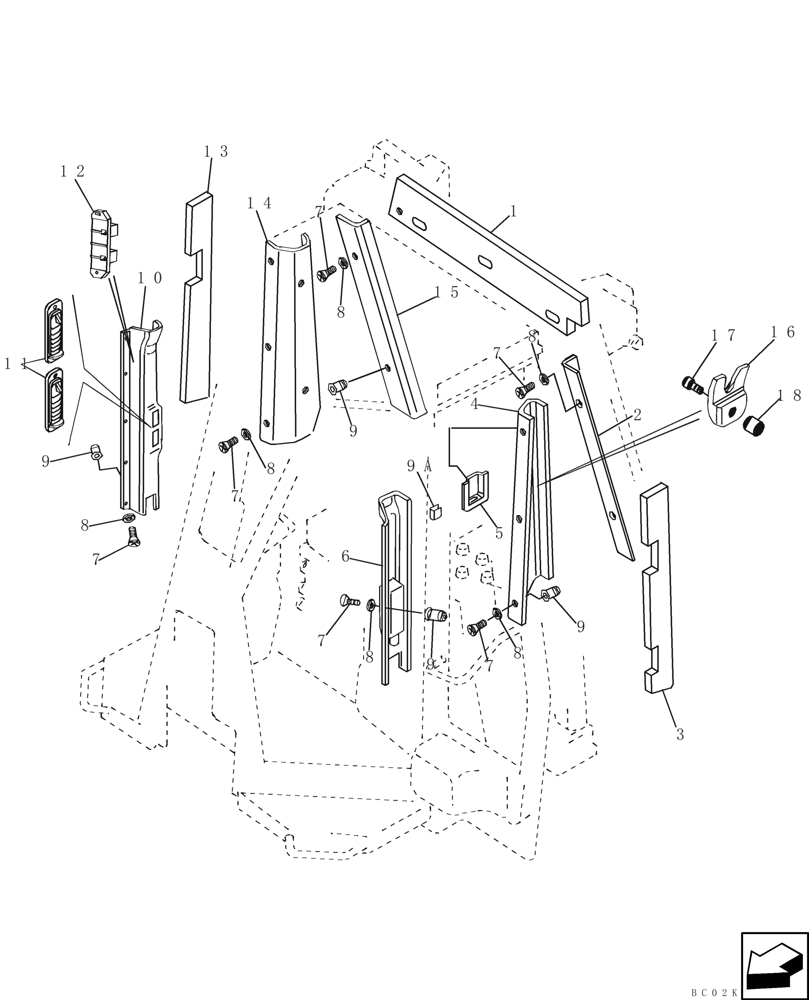

Запчасти Case 650K (09-31) - CAB - COVERS, INTERIOR POSTS (09) - CHASSIS/ATTACHMENTS

1

76301025

PANEL

Upper Rear

1шт.

2

76067964

COVER

Rear LH

1шт.

3

87400693

PANEL

Center, Left-Hand

1шт.

87400701

COVER ASSY

Center, Left-Hand; Incl. Ref 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Cover

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Telephone Support

1шт.

6

87400747

Cover; Front, Left-Hand

1шт.

7

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

35шт.

8

79076208

WASHER

Nylon, Black

35шт.

9

15629711

THREADED INSERT,Flat, M6 OD x 15mm L

M6 X 9.5

27шт.

9a

76067735

THREADED INSERT

Nut

4шт.

10

87400748

Cover; Front, Right-Hand

1шт.

11

76079036

VENT

Louvers

4шт.

12

87400706

CONTACT

Door Contact for Wipers

2шт.

13

87400694

PANEL

Center, Right-Hand

1шт.

14

87400703

PROTECTIVE COVER

Center, Right-Hand

1шт.

15

76067965

COVER

RH Rear

1шт.

16

76067422

COAT HOOK

1шт.

17

13274417

SCREW,Pozidriv Pan Hd, M5 x 20mm, Cl 5.8

2шт.

18

15629611

THREADED INSERT

M5

2шт.
