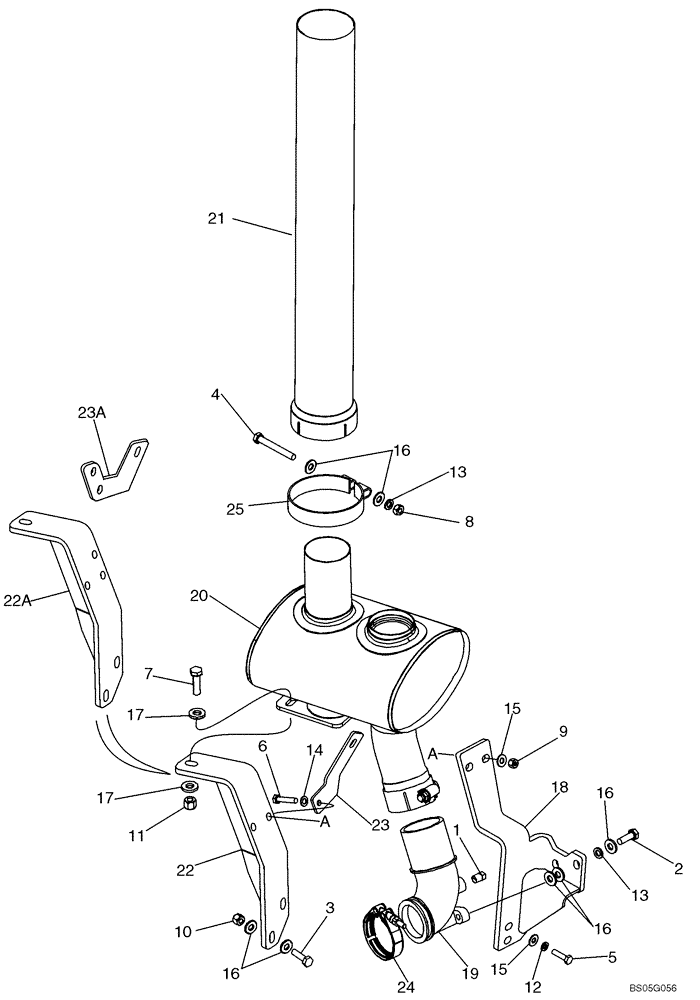

Запчасти Case 650K (02-08) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

217-506

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

3

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

4

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

6

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

7

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2-3шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

12

892-11008

LOCK WASHER,8mm ID

3шт.

13

892-11010

LOCK WASHER,M10

2-3шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2-3шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5-6шт.

16

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8-12шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

18

87308312

BRACKET, SUPPORTING

BRACKET Elbow Support

1шт.

19

87416402

ELBOW

Exhaust Outlet; Replaces J910992 Elbow Used On Some Models

1шт.

20

87311625

MUFFLER

Includes Clamp

1шт.

21

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

22

87446365

BRACKET, SUPPORTING

No Longer Available, Order 87324593 Bracket

1шт.

22a

87324593

BRACKET, SUPPORTING

Muffler Support

1шт.

23

87450952

BRACKET, SUPPORTING

Hose Support; 2 Holes; No Longer Available, Order 87324592 Bracket

1шт.

23a

87324592

BRACKET, SUPPORTING

Hose Support; 3 Holes

1шт.

24

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

25

R27699

CLAMP,114.3mm

1шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3-4шт.
