Запчасти Case 650K (09-26) - CAB - DOORS (09) - CHASSIS/ATTACHMENTS

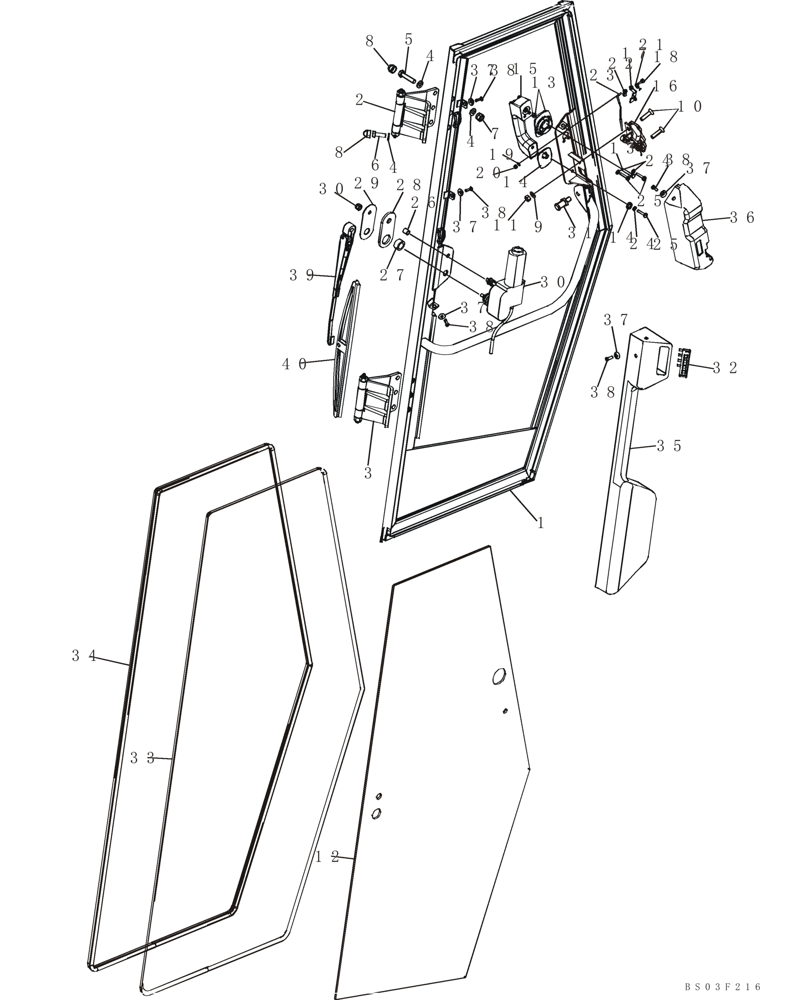

Схема запчастей Case 650K - (09-26) - CAB - DOORS (09) - CHASSIS/ATTACHMENTS
40
26
38
4
29
32
27
23
2
39
11
14
38
8
13
10
37
3
37
30
24
13
12
18
20
34
33
38
5
7
8
16
25
4
35
37
21
6
37
37
28
bs03f216
17
31
9
24
22
14
30
38
25
15
1
38
4
19
36

Артикул

Название

Примечание

Количество

87400762

DOOR ASSY.

Right Hand; Incl. Ref 1 - 40

1шт.

87400761

DOOR ASSY.

Left Hand; Incl. Ref 1 - 40

1шт.

1

87400756

FRAMEWORK

Right-Hand

1шт.

1

87400755

FRAMEWORK

Left-Hand

1шт.

2

87400618

HINGE

Upper; Grease Fitting On Bottom

2шт.

3

87400619

HINGE

Lower; Grease Fitting On Top

2шт.

4

14496534

WASHER,M8

x 17

36шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

12шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

7

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

12шт.

8

71480911

DUST CAP

M10

24шт.

9

14496534

WASHER,M8

x 17

4шт.

10

14442124

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 8.8

4шт.

11

16100814

NUT,M8, Cl 8, DAC

2шт.

12

87400793

GLASS

Right-Hand Door

1шт.

12

87400792

GLASS

Left-Hand Door

1шт.

13

321551A1

BEZEL

Component Parts Not Serviced Separately

2шт.

14

321552A1

BEZEL

Component Parts Not Serviced Separately

2шт.

15

87400791

HANDLE

Component Parts Not Serviced Separately

2шт.

16

87400626

LATCH

Right-Hand Door

1шт.

16

87400625

LATCH

Left-Hand Door

1шт.

17

87400809

LEVER

Right-Hand Door

2шт.

17

87400808

LEVER

Left-Hand Door

2шт.

18

87400807

PIN

Door Latch

2шт.

19

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

20

86625075

NUT,M4 x 0.7, Cl 8

2шт.

21

87400812

SPRING

Spring Latch Return; Right-Hand Door

1шт.

21

87400810

SPRING

Spring Latch Return; Left-Hand Door

1шт.

22

76301107

CLIP

Clip Latch Rod

2шт.

23

87400737

ROD

Door Latch Release

2шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

25

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

6шт.

26

87400794

BUSHING

2шт.

27

87400795

BUSHING

2шт.

28

87400796

GASKET

Seal; Door Wiper

2шт.

29

87400797

PLATE

Wiper Mount

2шт.

30

87622508

WIPER MOTOR

MOTOR, WIPER 12V Wiper Motor; Component parts not serviced separately; Replaces 87400634; Right-Hand

1шт.

30

87622507

WIPER MOTOR

MOTOR, WIPER 12V Wiper Motor; Component parts not serviced separately; Replaces 87400633; Left-Hand

1шт.

31

76067263

PIN

Door Latch

1шт.

32

87400636

CONTACT

Harness: Door Wiper Intermediate

2шт.

33

76067486

GASKET

Glass; Applies Between Glass and Frame

1шт.

34

76067154

DOOR SEAL

Door; Bulb Seal For Entire Door

1шт.

35

87400638

PROTECTIVE COVER

Right-Hand Door; Wiper Motor Cover

1шт.

35

87400637

PROTECTIVE COVER

Left-Hand Door; Wiper Motor Cover

1шт.

36

87400632

DOOR COVER

Right-Hand Door

1шт.

36

87400631

DOOR COVER

Left-Hand Door

1шт.

37

79076208

WASHER

12шт.

38

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

12шт.

39

76048974

WIPER ARM

350 mm lg.

2шт.

40

76048863

WIPER BLADE

400 mm lg.

2шт.

Выбрано товаров: 50
