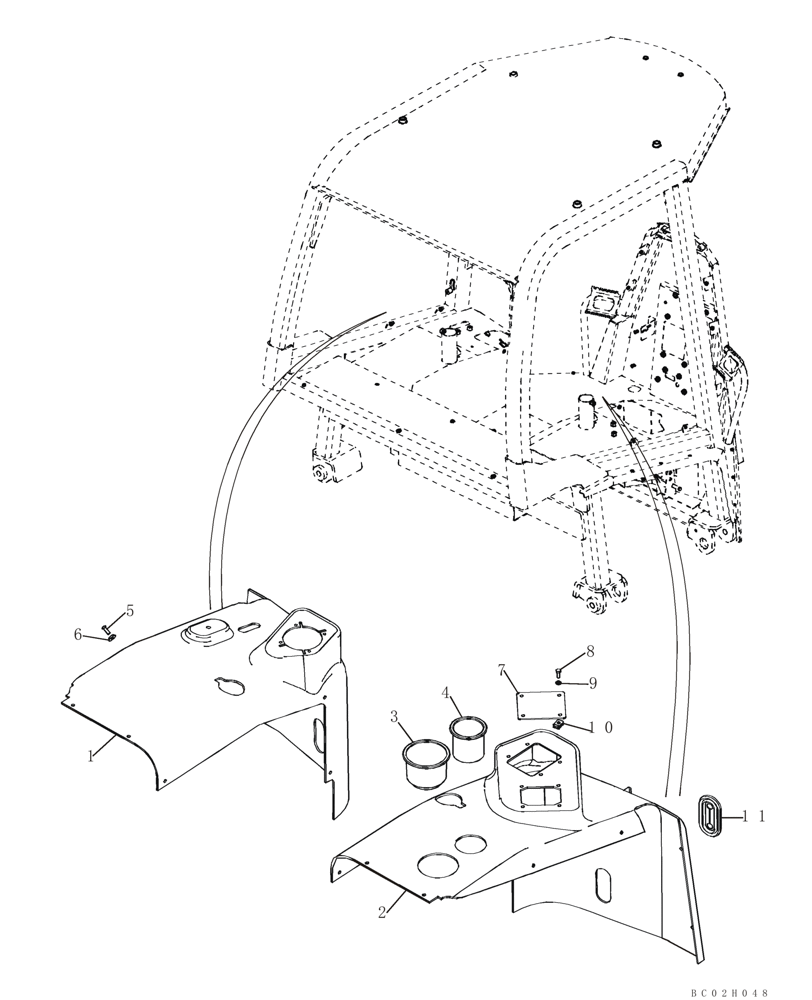

Запчасти Case 650K (09-21) - CANOPY, ROPS - CONSOLES, SIDE (09) - CHASSIS/ATTACHMENTS

1

86994223

CONSOLE

Left-Hand Side

1шт.

2

86994225

CONSOLE

Right-Hand Side

1шт.

3

87403116

TRAY

Cup Holder; Large

1шт.

4

87403115

TRAY

Cup Holder; Deep

1шт.

87311457

Adhesive Tape Strip; Used With Ref 3, 4; Not Illustrated

2шт.

5

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

M6 x 20 Oval Countersunk, Phillips Head, Black; Replaces 79105220 Oval Head Self Tapping Screw Used On Some Models

18шт.

6

79076208

WASHER

Nylon

18шт.

7

87400766

PROTECTIVE COVER

Control Cover; Auxiliary; Replaces 87404736

1шт.

8

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

9

892-11006

LOCK WASHER,M6

8шт.

10

76047274

NUT,M6 x 1

8шт.

11

76067249

SHIELD

Seal, Lockout Lever

2шт.
