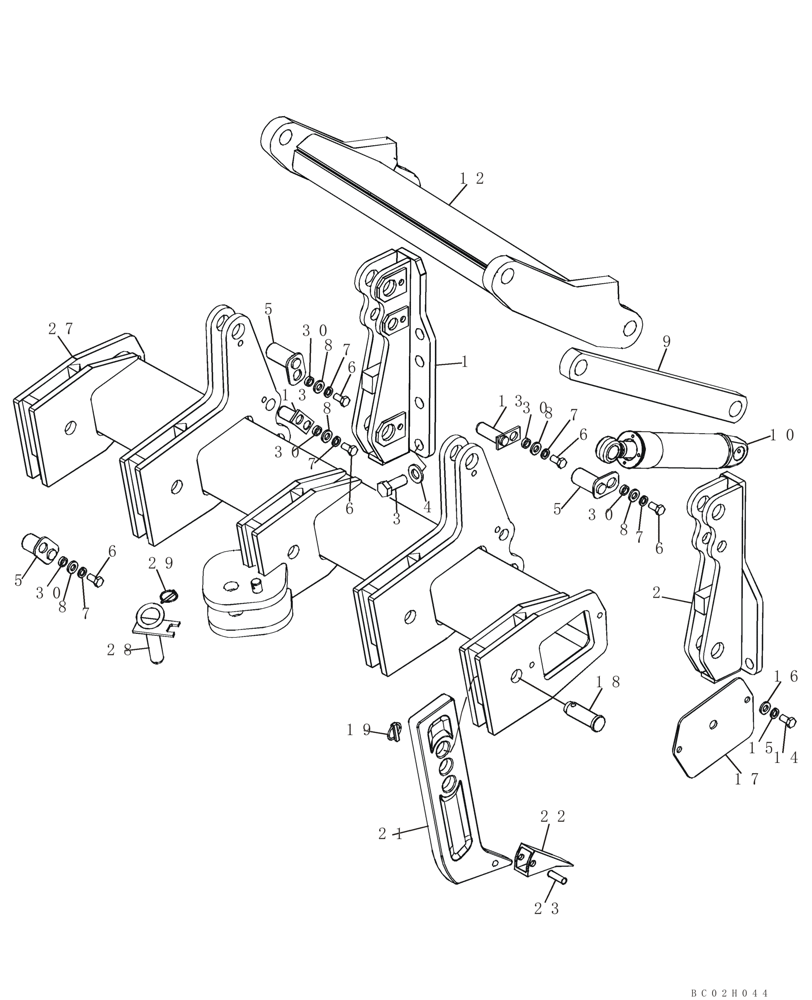

Запчасти Case 650K (09-05) - RIPPER (09) - CHASSIS/ATTACHMENTS

1

86984248

BRACKET

Left-Hand

1шт.

2

86984250

BRACKET

Right-Hand

1шт.

3

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

10шт.

4

496-31106

WASHER,1 1/16" x 2" x .219", HDN

10шт.

5

87407973

PIN, LOCKING

8шт.

6

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

12шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

12шт.

8

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

86993920

RIPPER

Ripper Kit; Includes Shanks, Cylinders, Tool Bar, and Upper and Lower Arms; Incl. Ref 9 - 12; 87406394, Ref 21 - 23; Ref 27

1шт.

9

86993921

ARM ASSY.

Upper

2шт.

10

86994129

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Right-Hand; Ripper; See Figure 08-14

1шт.

10

86994129R

REMAN-HYD CYLINDER

650K SERIES 2 CRAWLER (TIER 2), 83 ID x 206 mm strk; Right-Hand; Ripper (1/05-)

1шт.

10

86994129C

CORE-HYD CYLINDER

Return Number

1шт.

11

86994131

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Left-Hand; Ripper; Not Illustrated; See Figure 08-14

1шт.

11

86994131R

REMAN-HYD CYLINDER

SERIES 2 CRAWLER (TIER 2), 83 ID x 206 mm strk; Left-Hand; Ripper (1/05-)

1шт.

11

86994131C

CORE-HYD CYLINDER

Return Number

1шт.

12

86993922

ARM ASSY.

Lower

1шт.

13

87407974

PIN, LOCKING

Cylinder Mounting

4шт.

14

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

4шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

16

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

17

86993979

COVER ASSY

2шт.

18

87408425

PIN,38.05mm OD x 120mm L

Shank Mounting

3шт.

19

378704A1

LOCK PIN

3шт.

87406394

BUCKET TOOTH SHANK

Incl. Ref 21 - 23

3шт.

21

87406388

BUCKET TOOTH SHANK

1шт.

22

L55608

POINT

1шт.

23

D39448

PIN

1шт.

27

86993923

BAR ASSY.

Tool Bar

1шт.

28

431997A1

TOWBAR PIN

1шт.

29

A30338

PIN

1шт.

30

86993730

SPACER

Used As A Spacer

12шт.
