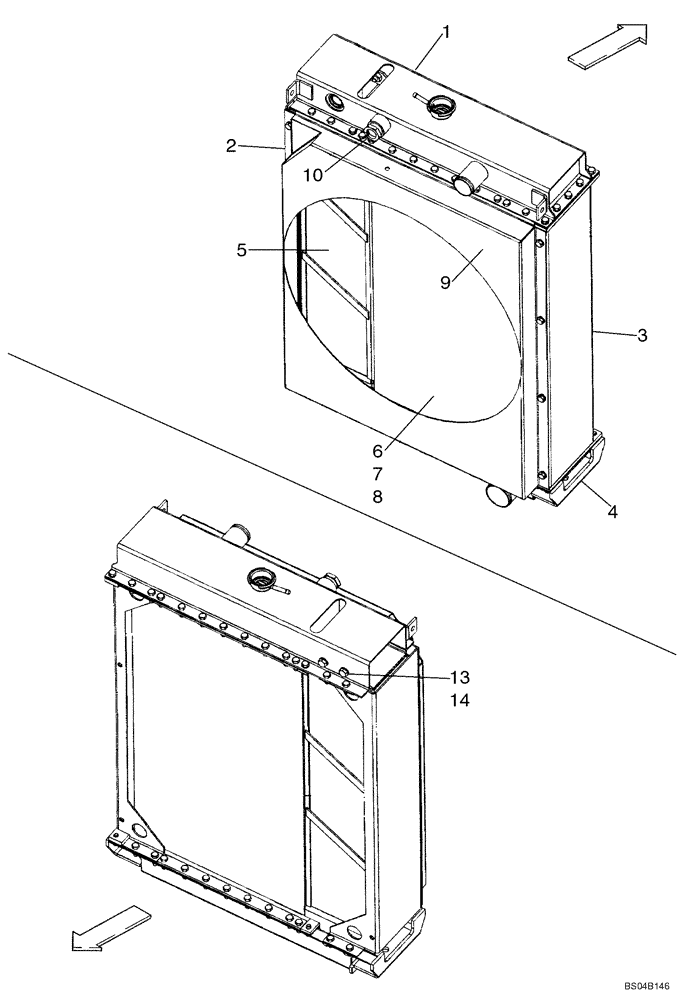

Запчасти Case 650K (02-04) - RADIATOR ASSY (02) - ENGINE

87449353

RADIATOR

Incl. Ref 1 - 14

1шт.

1

87411727

TANK

Upper

1шт.

2

87411728

RADIATOR PANEL

Left-Hand Side Member

1шт.

3

87411729

RADIATOR PANEL

Right-Hand Side Member

1шт.

87411730

PAD

Vibration Dampener

1шт.

4

87411731

TANK

Lower

1шт.

5

87411732

OIL COOLER

1шт.

6

87411733

CORE, RADIATOR

Core

1шт.

7

87411734

PLATE

Core Reinforcement

4шт.

8

87411735

PLATE

Core End Reinforcement

2шт.

N9762

GASKET

Gasket

2шт.

9

87450245

SHROUD

Radiator Fan Shroud

1шт.

10

87411737

SIGHTGLASS

Radiator Sight Glass

1шт.

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

29шт.

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

39шт.

892-11008

LOCK WASHER,8mm ID

20шт.

832-10408

NUT,M8 x 1.25, Cl 8.8

47шт.

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

8шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.
