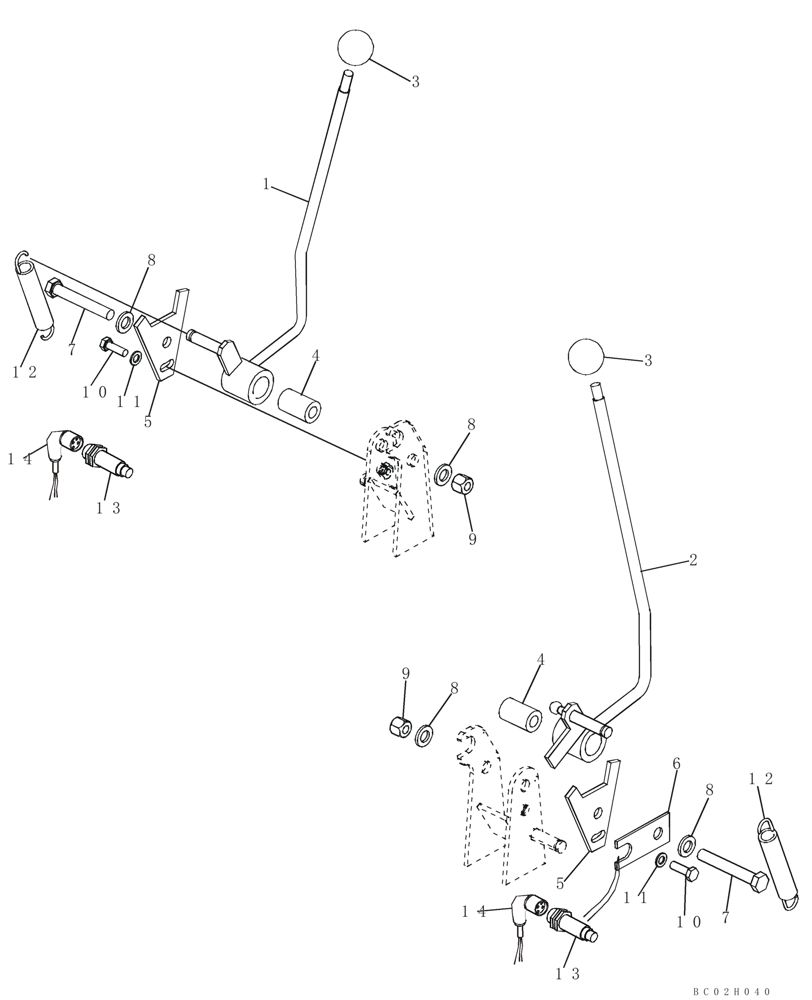

Запчасти Case 650K (07-03) - BRAKE, PARKING/LOCKOUT LEVERS (07) - BRAKES

REF

INSTRUCTION

FOR LOCKOUT SEAL SEE FIG 09-21

1шт.

1

76067241

LEVER

Lockout; LH

1шт.

2

76067242

LEVER

Lockout; RH

1шт.

3

76067250

HANDLE GRIP

M10

2шт.

4

76067251

BUSHING

25 OD x 40 mm lg

2шт.

5

76067421

YOKE

Plate

2шт.

6

76067420

PLATE

Sensor Mount

1шт.

7

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

76067454

SPRING

2шт.

13

79113969

SENSOR

Proximity; Sold Separately or Included in 87410122 Cab Main Harness or 87410144 Canopy Main Harness

2шт.

14

79113970

ELECTRIC CABLE

Attaches to Main Harness; Sold Separately Or Included In 87410122 Cab Main Harness or 87410144 Canopy Main Harness

2шт.
