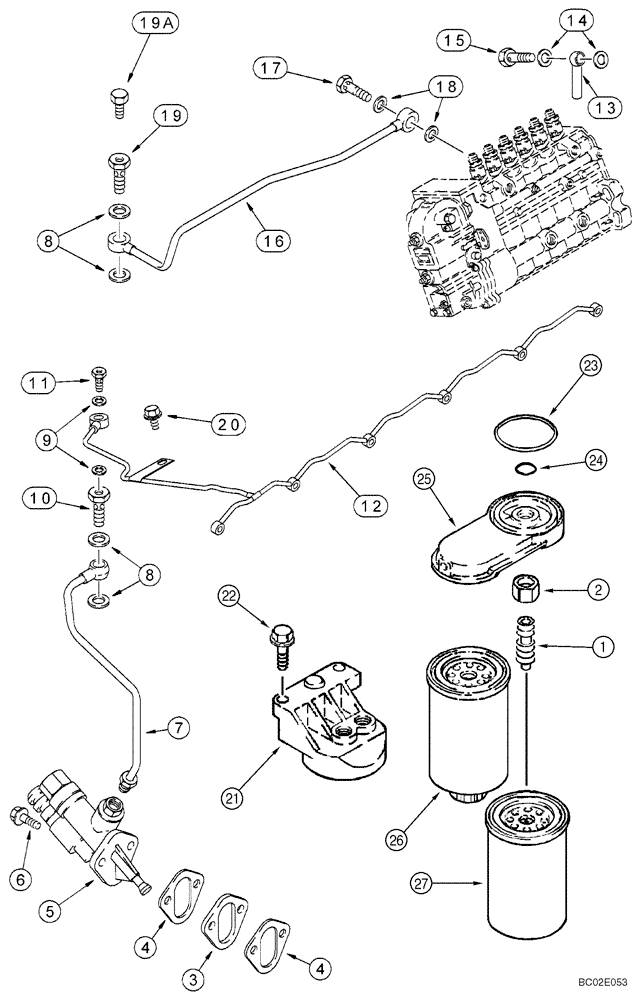

Запчасти Case 650K (03-06) - FUEL FILTER - PUMP, TRANSFER, 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J903293

JAM NUT

M16

1шт.

3

J914284

SPACER

1шт.

4

J939258

GASKET,1.21mm Thk

2шт.

5

J936316

FUEL PUMP

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

1шт.

8

J935171

SEALING WASHER

12 x 19 x 1,5 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

11

J924726

BANJO BOLT

1шт.

12

J284529

MANIFOLD

1шт.

13

J944869

HYD CONNECTOR

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

87409051

VALVE

Overflow

1шт.

16

J936687

FUEL TUBE

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

19a

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

M6 x 10

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

21

J933752

HEAD

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

23

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING

1шт.

24

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING

1шт.

25

NLS

NO LONGER SERVICED

1шт.

A77470

SEPARATOR

Fuel; Kit; Incl. Ref 26, 27

1шт.

26

J930942

SEPARATOR

Primary

1шт.

27

J931063

FUEL FILTER

Secondary

1шт.
