Запчасти Case 650K (03-05) - FUEL INJECTION SYSTEM - 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

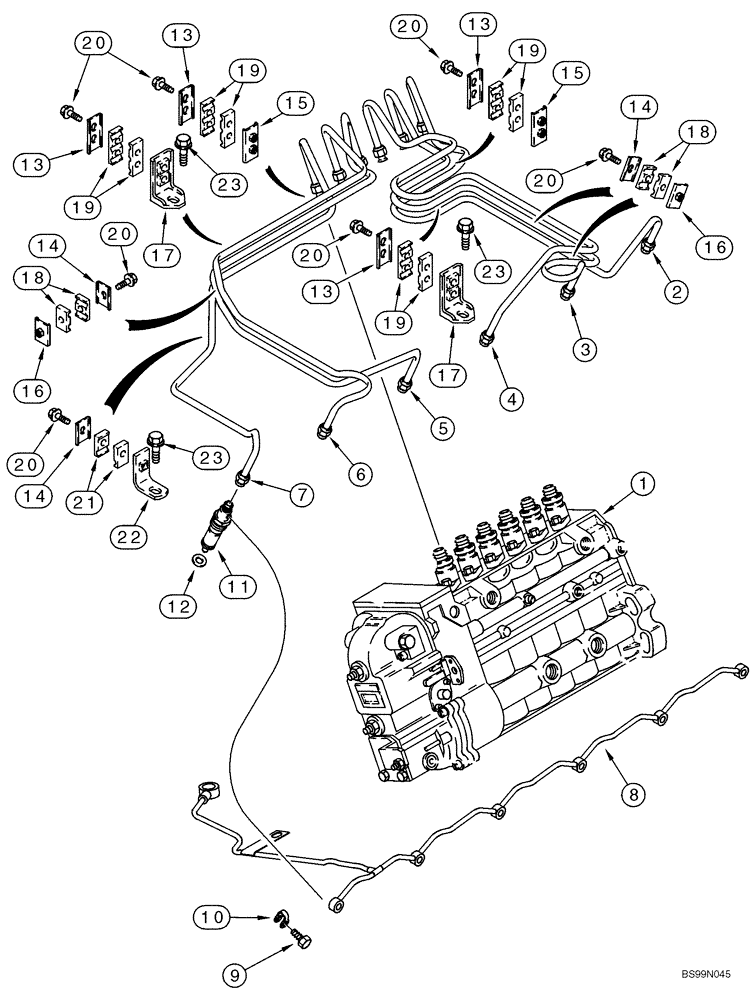

Схема запчастей Case 650K - (03-05) - FUEL INJECTION SYSTEM - 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
12
15
20
23
8
20
14
22
23
4
23
10
17
15
19
9
1
19
20
7
13
5
19
13
14
20
3
18
20
16
13
11
16
17
14
13
19
18
2
20
6
21

Артикул

Название

Примечание

Количество

1

87426177

FUEL INJECTION PUMP

See Figure 03-07

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 1

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 2

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 3

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 4

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 5

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 6

1шт.

8

J284529

MANIFOLD

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

10

J903380

SEAL

6шт.

11

J929490

NOZZLE INJECTION

See Figure 03-08

6шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

12

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1,5 mm

6шт.

13

J904519

SUPPORT

4шт.

14

CURJ904711

CLAMP

3шт.

15

J917716

BRACE

2шт.

16

J917717

BRACE

2шт.

17

J282942

BRACKET

2шт.

18

J917746

CLAMP

4шт.

19

J917747

CLAMP

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

11шт.

21

J919359

CLAMP

2шт.

22

J940840

BRACE

1шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 25
