Запчасти Case 650K (02-22) - GASKET KIT, CYLINDER BLOCK - 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

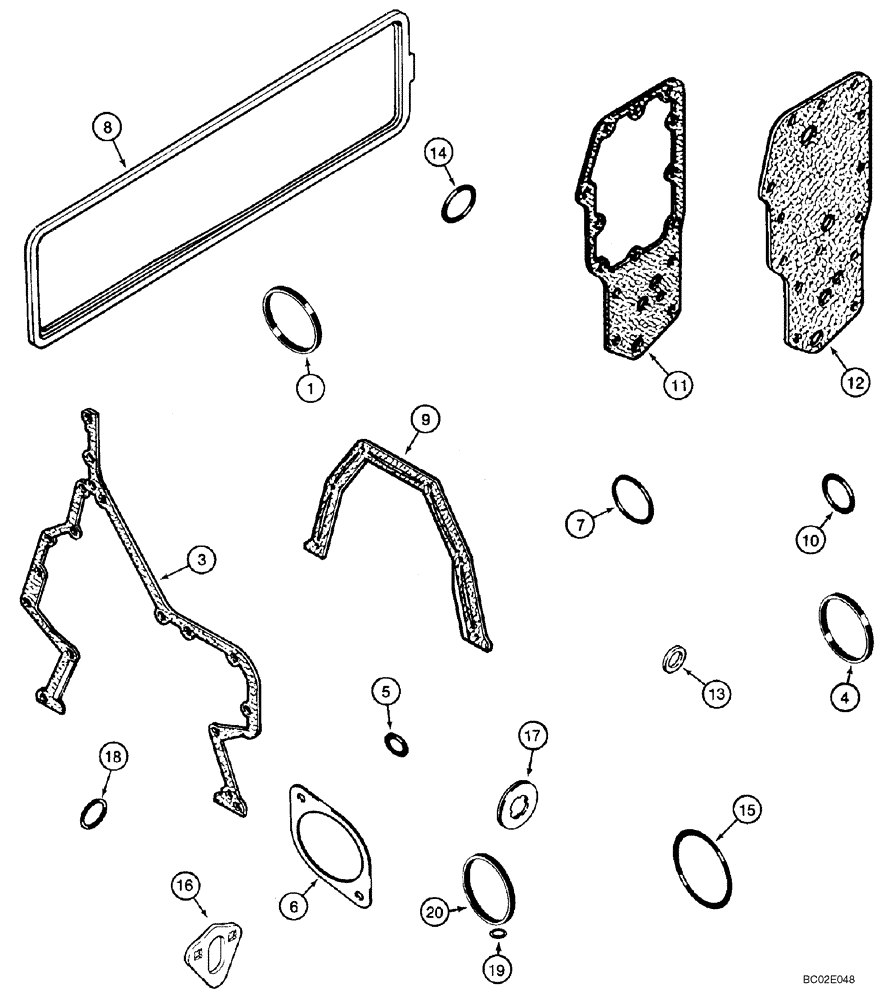

Схема запчастей Case 650K - (02-22) - GASKET KIT, CYLINDER BLOCK - 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
4
15
14
12
1
5
19
10
13
11
8
9
6
3
20
17
16
18
7

Артикул

Название

Примечание

Количество

A77964

SEAL PACKAGE

Incl. Ref 1 - 20

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-09

1шт.

3

J938156

GASKET,0.79mm Thk

See Figure 02-09

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 02-09

1шт.

5

J913994

O-RING

See Figure 02-09

1шт.

6

J938655

GASKET,1.27mm Thk

See Figure 02-09

1шт.

7

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

See Figure 02-08

1шт.

8

J284623

GASKET

See Figure 02-17

1шт.

9

J938159

GASKET

See Figure 02-18

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; See Figure 02-17

1шт.

11

J942914

GASKET

See Figure 02-12

1шт.

12

J942915

GASKET

Production Only; See Figure 02-12

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-13

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; Not Used In This Application

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-19

1шт.

16

J939258

GASKET,1.21mm Thk

See Figure 03-06

1шт.

17

J928759

SEALING WASHER

See Figure 02-17

8шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See Figure 02-19

1шт.

19

J929457

O-RING

23/32 ID x 7/64; See Figure 02-12

1шт.

20

J935032

SEAL

See Figure 03-07

1шт.

Выбрано товаров: 20
