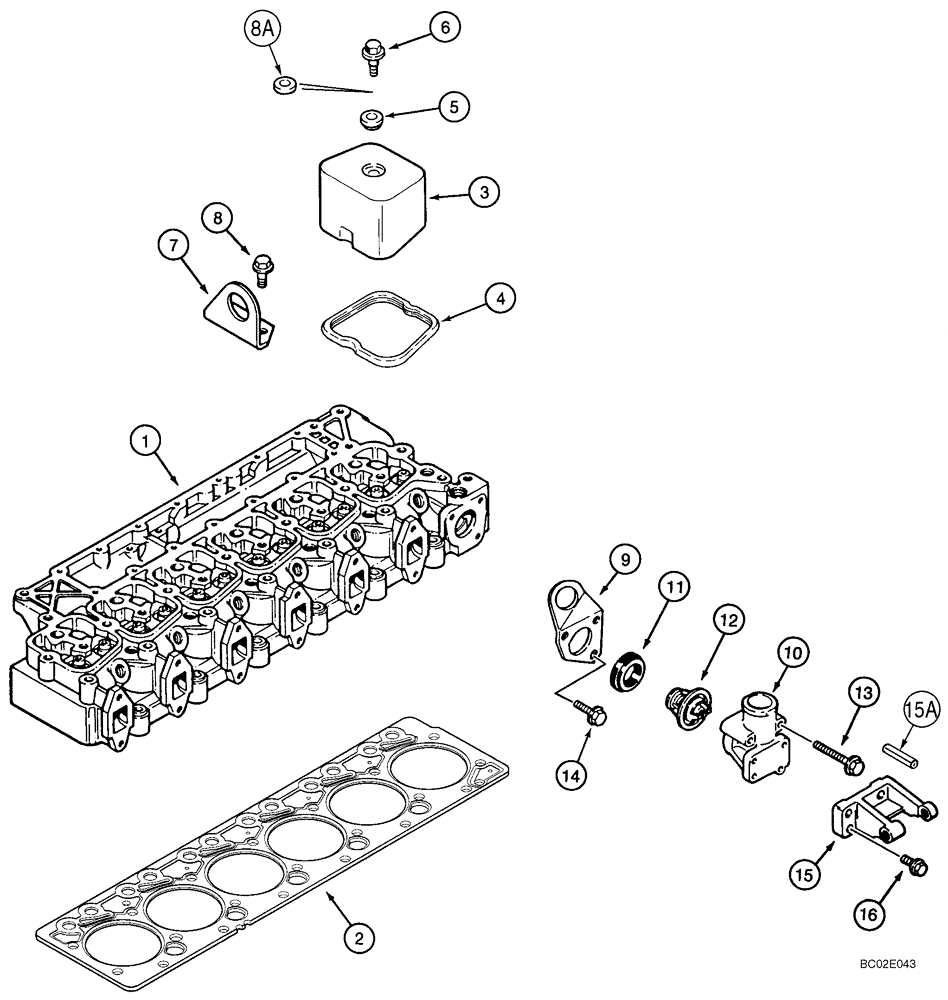

Запчасти Case 650K (02-14) - CYLINDER HEAD - COVER, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J938656

CYLINDER HEAD

See Figure 02-15

1шт.

2

J283335

GASKET,2.32mm Thk

1шт.

2

J283337

GASKET,2.24mm Thk

0,25 mm

1шт.

2

J283339

GASKET

0,50 mm

1шт.

3

J928404

COVER

6шт.

4

J930906

GASKET

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

6

J907049

BOLT,Hex

M8 x 21

6шт.

7

J908118

BRACKET

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

8a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"); Thermostat and Housing

6шт.

9

J903757

BRACKET

1шт.

10

J285102

HOUSING

Thermostat

1шт.

A77736

THERMOSTAT

Thermostat; Incl. Ref 11, 12

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J287096

SUPPORT

Incl. Ref 15A

1шт.

15a

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.
