Запчасти Case 650K (02-11) - TURBOCHARGER ASSY - 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

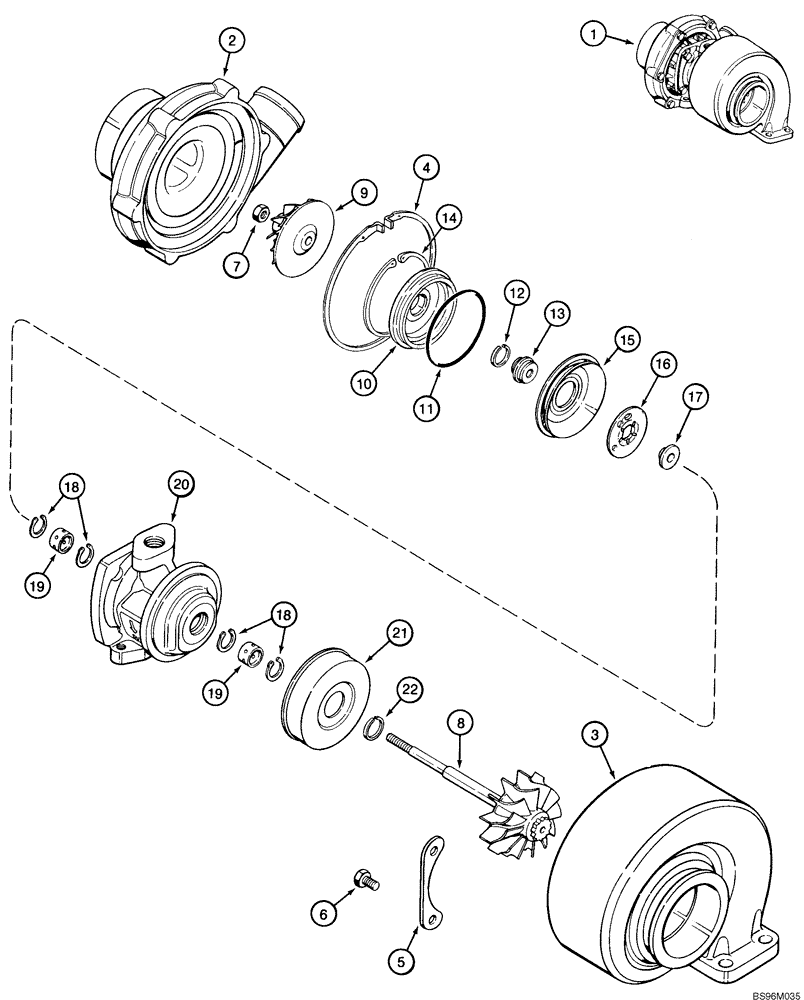

Схема запчастей Case 650K - (02-11) - TURBOCHARGER ASSY - 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
18
8
12
9
13
16
2
14
1
11
21
10
19
6
18
19
17
4
5
22
20
15
7
3

Артикул

Название

Примечание

Количество

1

J802770

TURBOCHARGER

Incl. J709861 and J519807 Gaskets, Which Are Not Serviced Separately; Also Includes Ref 2 - 22

1шт.

1

JR802770

REMAN-TURBOCHARGER

850K

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

J533163

SNAP RING

1шт.

5

J501188

PLATE

2шт.

6

J759917

SET SCREW

6шт.

J575217

HOUSING

Center; Incl. Ref 7 - 22

1шт.

7

NSS

NOT SOLD SEPARAT

Nut

1шт.

8

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Impeller

1шт.

10

NSS

NOT SOLD SEPARAT

Plate

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Slinger

1шт.

14

NSS

NOT SOLD SEPARAT

Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Baffle

1шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

17

NSS

NOT SOLD SEPARAT

Collar

1шт.

18

NSS

NOT SOLD SEPARAT

Ring

4шт.

19

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

NSS

NOT SOLD SEPARAT

Shield

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

J575169

REPAIR KIT

Turbocharger; Overhaul; Incl. Ref 6, 7, 11, 12, 14, 15, 16, 18, 19, 22

1шт.

Выбрано товаров: 26
