Запчасти Case 650K (09-51) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

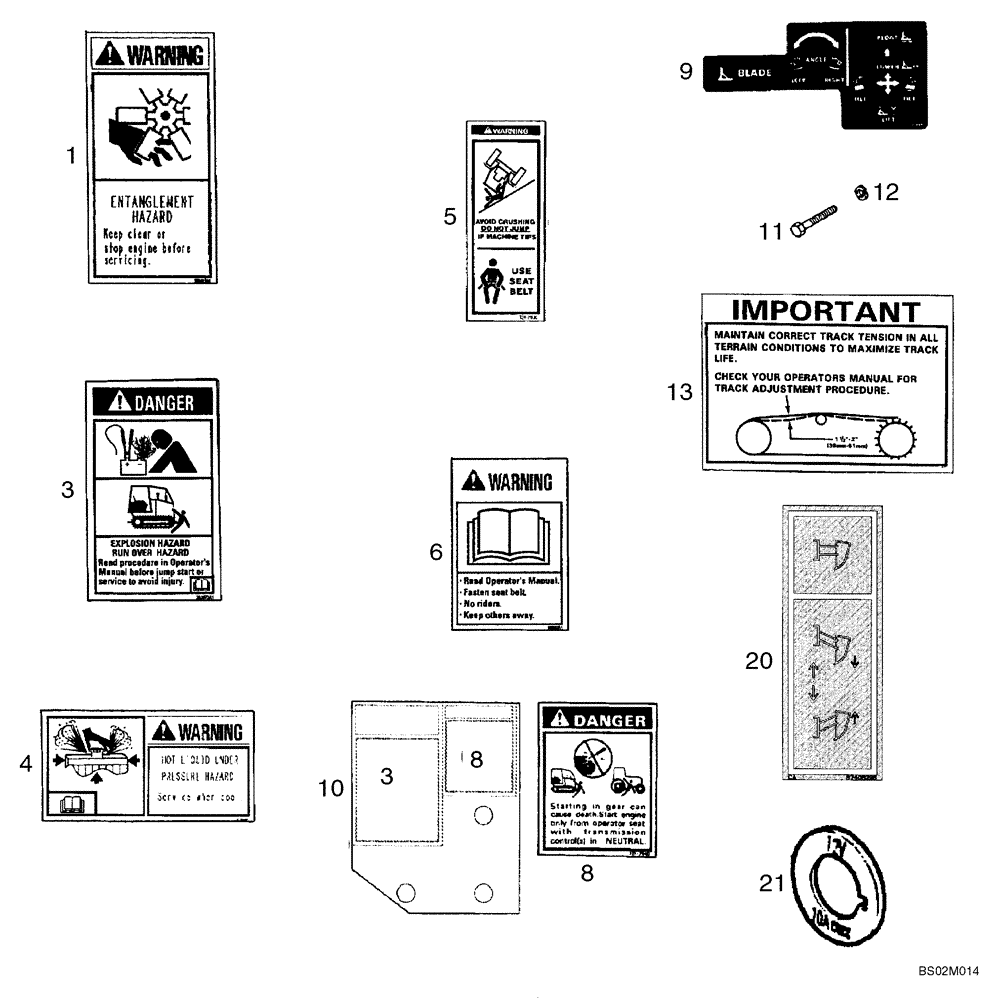

Схема запчастей Case 650K - (09-51) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS
20
5
8
13
11
21
12
1
10
9
3
8
3
6
4

Артикул

Название

Примечание

Количество

1

334034A1

WARNING DECAL

Entanglement Hazard

2шт.

3

389736A1

DECAL

Danger; Jump Start, Battery

2шт.

4

389741A1

DECAL

Warning; Radiator Cap

1шт.

5

124271A1

DECAL

Warning; Do Not Jump

1шт.

6

334000A2

DECAL

Warning; Read the Operator's Manual

1шт.

8

124281A1

DECAL

Danger; Engine Start Warning

1шт.

9

87421171

DECAL

Dozer Blade Control Pattern

1шт.

10

109696A1

LARGE PLATE

PLATE, LARGE Decal Mounting, Used With Ref 3, 8

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

87421173

DECAL

Important; Track Tension

1шт.

20

87408298

DECAL

Ripper Control Pattern

1шт.

21

76067229

DECAL

At 12V Plug Receptacle; Cab Models

1шт.

Выбрано товаров: 13
