Запчасти Case 650K (02-08) - WATER PUMP SYSTEM - 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

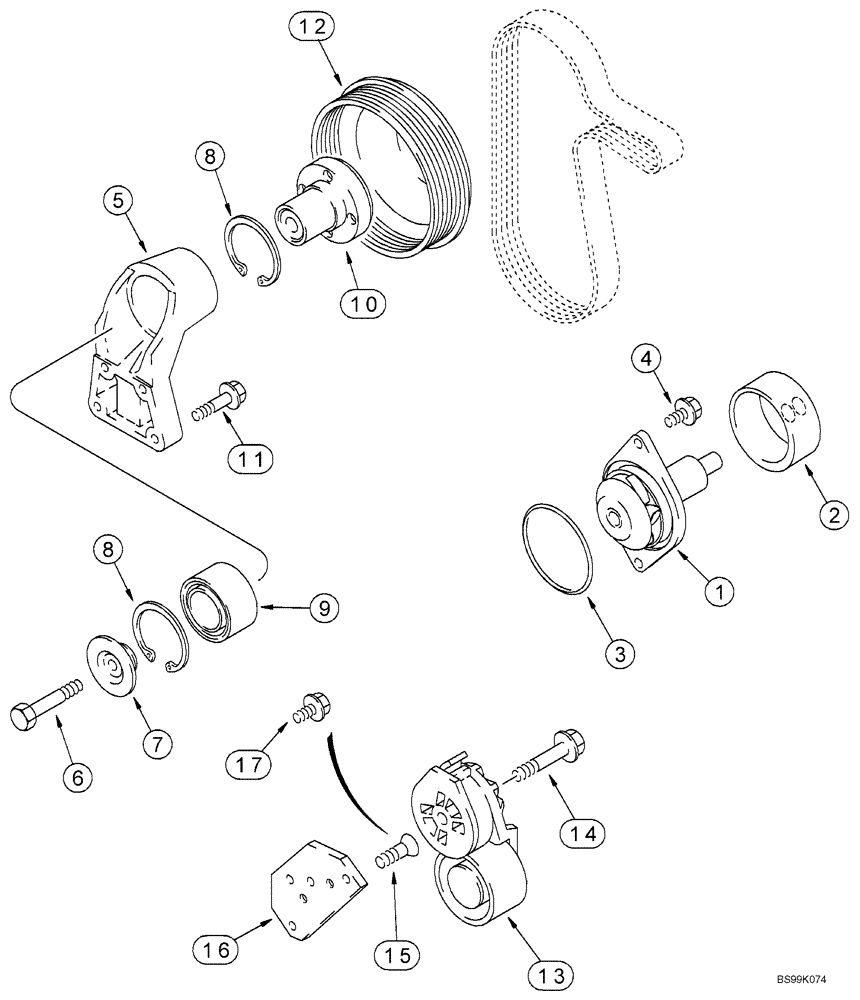

Схема запчастей Case 650K - (02-08) - WATER PUMP SYSTEM - 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
11
4
2
8
1
12
9
16
14
5
15
6
8
3
17
10
7
13

Артикул

Название

Примечание

Количество

J286277

PUMP, WATER

Kit; Incl. Ref 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

650K, 750K, 850K

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

Incl. Ref 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

1шт.

13

J936203

BELT TENSIONER

1шт.

14

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

16

J925207

SUPPORT

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 20
