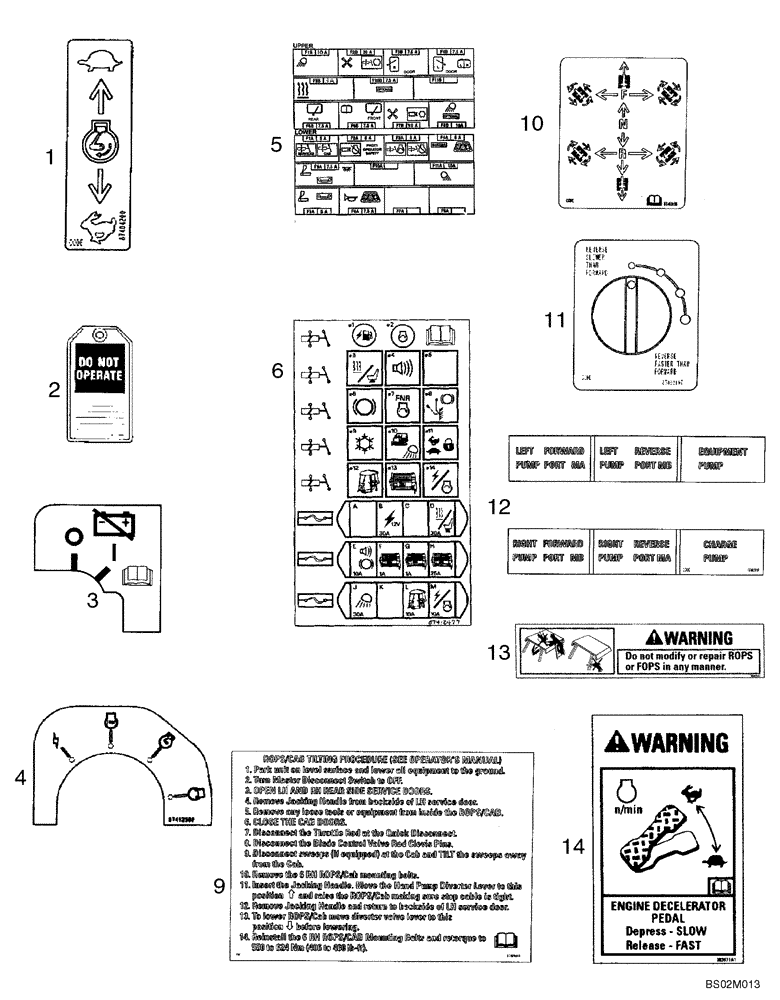

Запчасти Case 650K (09-47) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

1

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

2

321-4614

TAG

Do Not Operate Tag

1шт.

3

379422A1

DECAL

Master Disconnect Switch

1шт.

4

87412595

DECAL

Ignition Switch

1шт.

5

87415509

DECAL

Fuse/Relays, In Cab/Canopy Assembly

1шт.

6

87412477

DECAL

Fuse/Relays

1шт.

9

87421180

DECAL

Canopy/Cab Tilting Procedure

1шт.

10

87422184

DECAL,57mm x 69mm H

Forward/Neutral/Reverse

1шт.

11

87421178

DECAL

Reverse Controller

1шт.

12

87421176

DECAL

Diagnostics

1шт.

13

383972A1

WARNING DECAL,195mm x 37mm H

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

14

383971A1

DECAL

Warning, Engine Decelerator Pedal

1шт.

15

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector, Rectangular; Not Illustrated

2шт.
